Hyundai Genesis: Panorama sunroof / Sunshade
.jpg)

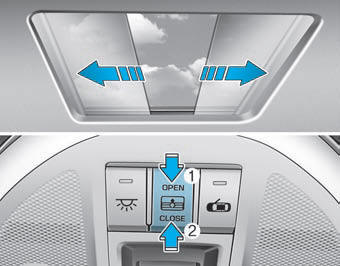

- To open the sunshade, press the
sunshade control switch (1).
- To close the sunshade, press the
sunshade control switch (2). If you
press the switch when the sunroof
glass is opened, the sunroof glass
will close then the sunshade will
close.
To stop the sliding at any point, press
the sunshade control switch momentarily.
The Engine Start/Stop button must
be in the ON position before you can
open or close the sunroof.
✽ NOTICE
In cold and wet climates, the sunroof
may not work properly due to freezing
con ...
When the sunshade is closed
If you pull the sunroof control lever
backward, the sunshade will slide all
the way open then the sunroof glass
will slide all the way open.To stop the
sunroof m ...
