Hyundai Genesis (DH): Intake And Exhaust System / Surge Tank Components and Components Location
| Components |

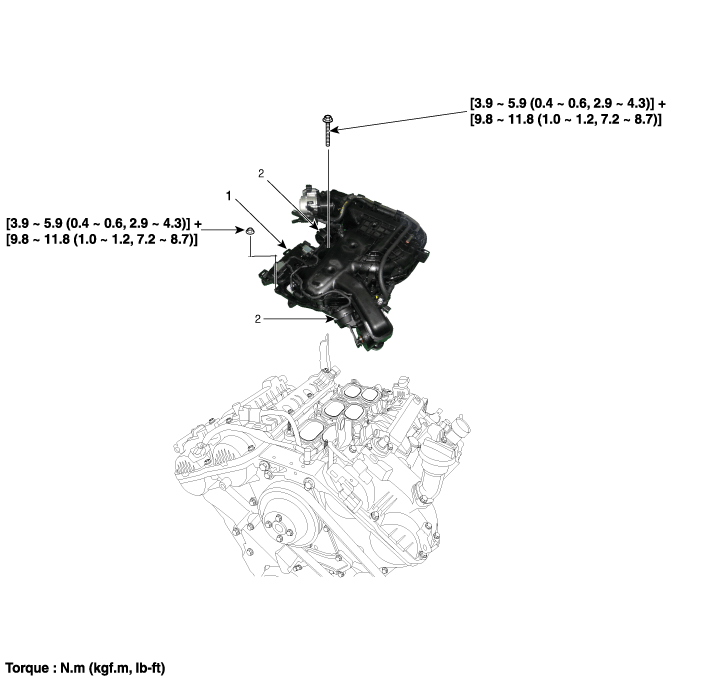

| 1. Surge tank | 2. VIS actuator |
Removal and Installation 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine cover. (Refer to Engine And Transaxle Assembly - "Engine Cover") 3.
Removal and Installation 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine cover. 3. Remove the engine room cover.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Components and Components Location
Component Location Index Engine Room [Lambda Engine] 1. Expansion Valve2. Suction & Liquid Tube Assembly3. Service Port (Low Pressure)4. Service Port (High Pressure)5. A/C Pressure Transducer (APT)6. Compressor7. Condenser8. Receiver-drier [Tau Engine] 1.
Hyundai Genesis (DH) 2013-2016 Service Manual: Intake Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the intake actuator connector. 3. Verify that the intake actuator operates to the fresh position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the intake actuator operates to the recirculation position when connected in reverse.
