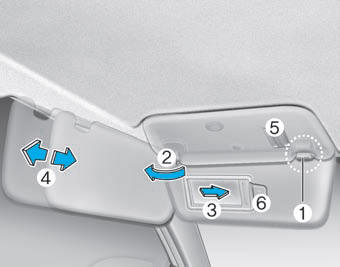

To use a sunvisor, pull it downward.
To use a sunvisor for a side window,
pull it downward, unsnap it from the
bracket (1) and swing it to the side (2).
To use the vanity mirror, pull down the
sunvisor and slide the mirror cover (3).
Adjust the sunvisor forward or backward
(4) as needed. Use the ticket
holder (5 and 6) to hold tickets.
✽ NOTICE
Close the vanity mirror cover
securely and return the sunvisor to
its original position after use.
WARNING
For your safety, do not block
your view when using the sunvisor.
CAUTION
- Do not put several tickets in
the ticket holder at one time.
This could cause damage to
the ticket holder.
- Avoid putting a plastic card
such as a credit card in the
ticket holder located in the
outside of the sunvisor. This
could cause damage to the
plastic card.
