Hyundai Genesis: Hood / Hood Latch Release Handle Components and Components Location

Component Location

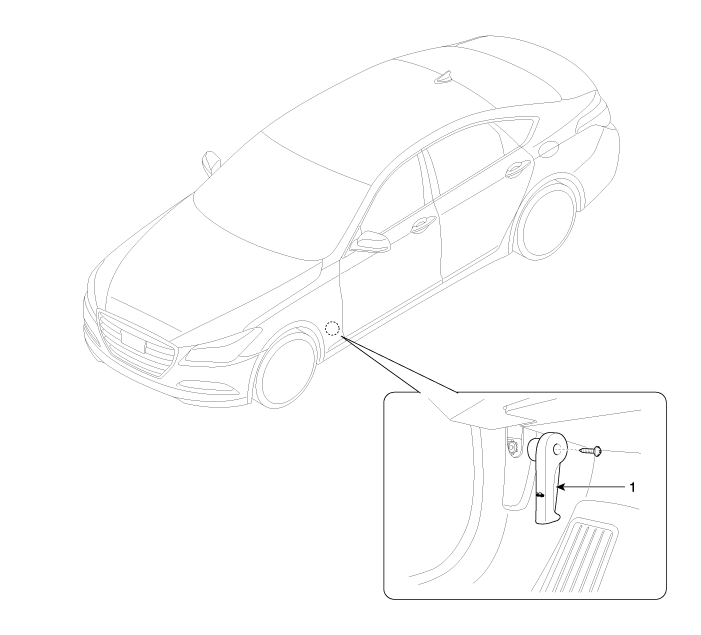

1. Hood latch release handle

Hood Seal Weatherstrip Repair procedures

Replacement 1. Remove the hood seal weatherstrip (A) and then remove the clip from the panel.     • Be careful not to scratch the hood seal weatherstrip. 2. Instal ...

Hood Latch Release Handle Repair procedures

Replacement 1. After loosening the mounting screw, remove the hood latch release handle (A). 2. Install in the reverse order of removal.     • Make sure the hood latch ...
