Hyundai Genesis (DH): Brake System / Stop Lamp Switch Schematic Diagrams
| Schematic Diagram |

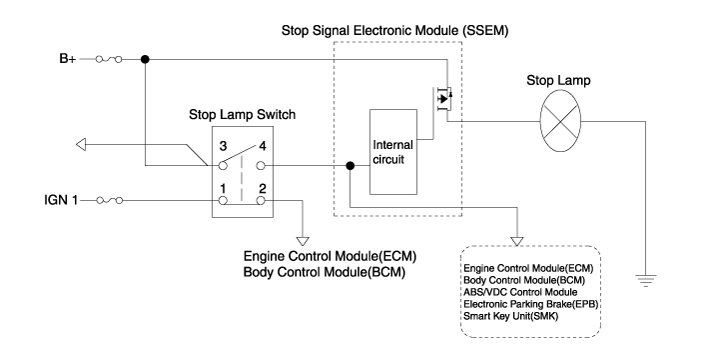

| System Circuit Diagram |
| Terminal function |
| Description | |
| 1 | IGN1 |
| 2 | Engine Control Module (ECM) |
| 3 | B+ |
| 4 | Stop Lmap |
Description The stop lamp switch plays the role of supplying signals to turn on stop lamps and convenience devices (HECU, ECU, BCM, SML, etc.). The stop lamp switch is a system for drivers to express their intention to the brake by press the brake pedal.
Troubleshooting 1. Part diagnosis Items Cause Symptom RemedySwitch fuse Faulty fuse connection, Damaged fuse - DTC Code : P0504 - Symptom : Shifting gear trouble, Starting failure, Cruise control function cancelation trouble, EPB function cancelation trouble, Stop lamp lighting trouble, ESP OFF light illuminated.
