Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Crash Pad / Steering Column Shroud Panel Components and Components Location

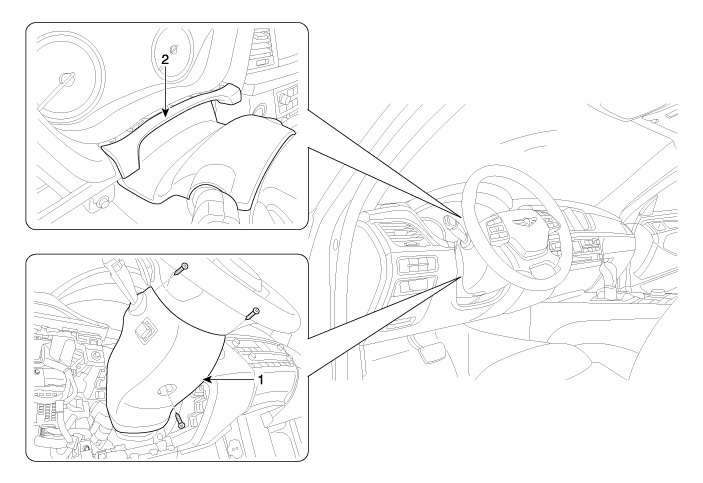

Component Location

1. Steering column shroud lower panel
2. Steering column shroud upper panel

Glove Box Repair procedures
Replacement     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or remover, wrap protective tape around ...

Steering Column Shroud Panel Repair procedures
Replacement [Steering Column Shroud Upper Panel]     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or ...
