Hyundai Genesis: Crash Pad / Glove Box Repair procedures

Replacement

Put on gloves to prevent hand injuries.

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove both stoppers (B) from the glove box (A) by turning the stoppers.

2.
Separate the air damper (A) from the glove box (B).

3.

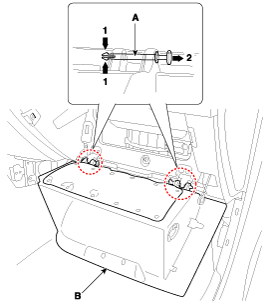

Disconnect the pushpins (A) and then remove the glove box (B).

4.
Install in the reverse order of removal.

Make sure the connector is connected properly.
Replace any damage clips.
Glove Box Components and Components Location
Component Location 1. Glove box ...

Steering Column Shroud Panel Components and Components Location
Component Location 1. Steering column shroud lower panel2. Steering column shroud upper panel ...
