Description

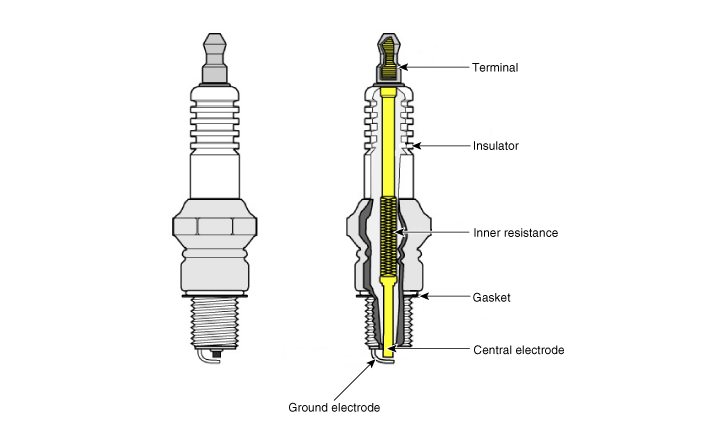

A spark plug is a device for delivering electric current from an ignition system to the combustion chamber of a spark-ignition engine to ignite the compressed fuel/air mixture therein by means of an electric spark, while containing combustion pressure within the engine. A spark plug has a metal threaded shell, electrically isolated from a central electrode by a porcelain insulator.

Ignition Coil Repair procedures

Removal Ignition Coil #1 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Remove the engine wiring protector (A) after loosening the bolt. 3. Disconnect ...

Spark Plug Specifications

Specification ItemSpecificationTypeDILKR7A11Gap 1.0 ~ 1.1 mm (0.0394 ~ 0.0433 in.) ...
