Hyundai Genesis (DH): Smart Key System / Smart Key Unit Schematic Diagrams

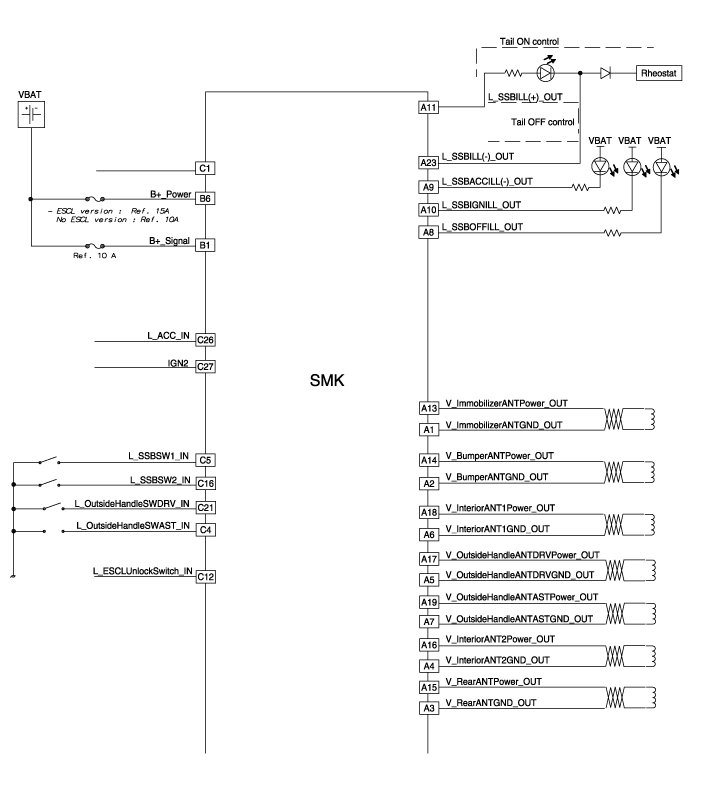

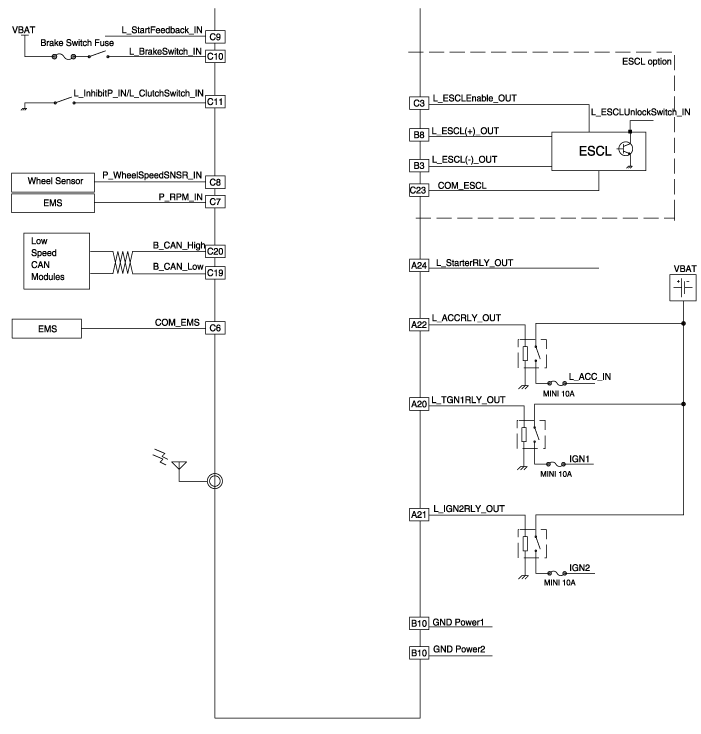

Circuit Diagram

    Components (1) NO.Connector AConnector BConnector C1Immobilizer antenna GNDB+IGN2 input2Bumper antenna GND??3Trunk antenna GNDESCL GRN ESCL enable output4Indoor antenna 2 GND?Assist door button input5Driver's door antenna GNDGNDSSB_switch1 inpuf6Indoor antenna 1 GNDB+POWEREMS CAN7Door antenna assist GND?RPM signal inpuf8SSB_LED OFF outputESCL BAT Wheel speed input9SSB_LED ACC output?Start Feedback signal inpuf10SSB_LED IGN outputGNDBrake switch signal input (Normal Open)11SSB LED POWER?P  signal input (AT specification)12??ESCL unlock signal input13Immobilizer antenna power??14Bumper antenna power??15Trunk antenna power??16Indoor antenna 2 power? SSB switch2 inpuf17Driver's door antenna power??18Indoor antenna 1 power??19Assist door antenna  power?B CAN LOW20IGN2 relay output?B CAN HIGH21IGN2 relay output?Driver's door switch input22ACC relay output??23SSB LED GND? ESCL CAN24Starter relay output??25???26??ACC 27??IGN2

    Removal Smart Key Unit 1. Disconnect the negative (-) battery terminal. 2. Remove the driver crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 3.

    Other information:

    Hyundai Genesis (DH) 2013-2016 Service Manual: Front Fog Lamps Repair procedures

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front bumper. (Refer to Body - "Front Bumper Cover") 3. Disconnect the front fog lamp connector (A). 4. Remove the front fog lamp assembly (A) after loosening the mounting nut.

    Hyundai Genesis (DH) 2013-2016 Service Manual: PGS Unit (Back & Blinde Unit) Repair procedures

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the glove box housing (A). (Refer to Body - "Glove Box") 3. Remove the PGS unit (A) after loosening the nuts. Installation 1. Install the PGS unit. 2. Install the glove box housing.
