Hyundai Genesis: SRSCM / Side Impact Sensor (SIS) Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Restraint / SRSCM / Side Impact Sensor (SIS) Components and Components Location

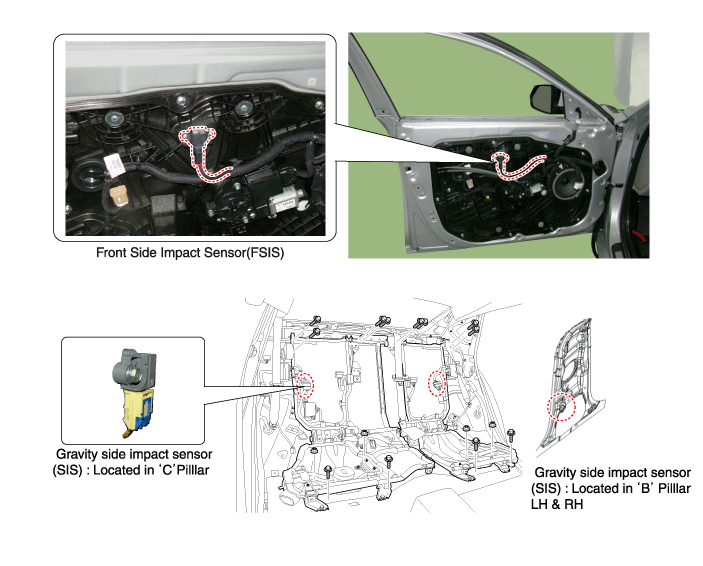

Components

Side Impact Sensor (SIS) Description and Operation
Description The Side Impact Sensor (SIS) system consists of two kinds of side impact sensor which are installed at each center of the front door module (left and right) and two rear sensors whi ...

Side Impact Sensor (SIS) Repair procedures
Removal     • Removal of the airbag must be performed according to the precautions/procedures described previously. • Before disconnecting the side impact sensor conn ...
