Hyundai Genesis (DH): Automatic Transmission Control System / Shift Cable Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Automatic Transmission System (SBC) / Automatic Transmission Control System / Shift Cable Components and Components Location

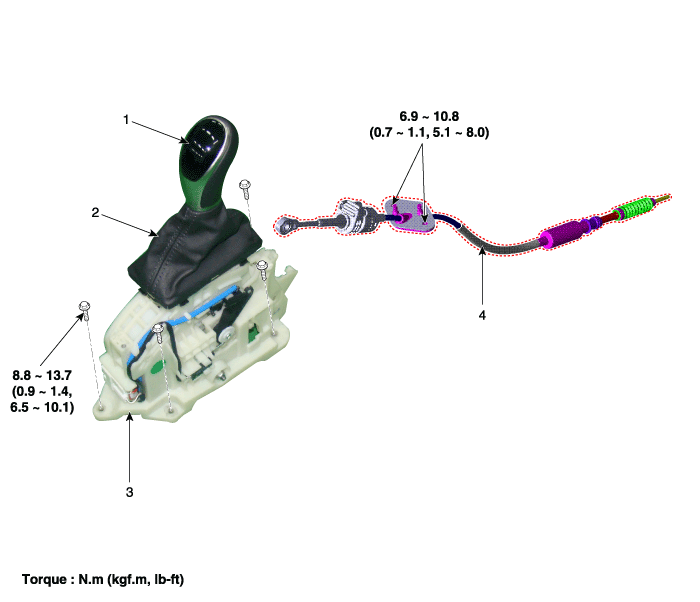

Components

1. Shift lever knob
2. Shift lever boots

3. Shift lever assembly
4. Shift cable

❮Shift Lever Repair procedures

Removal 1. Remove the console upper cover (A). 2. Pull the shift lever knob (B) upward to remove it. 3. Remove the knob&boots(A) from the console upper cover.

Shift Cable Repair procedures❯

Removal 1. Remove the nut (B) and clip (C). 2. Remove the shift cable (A) assembly from the transmission. Tightening torque : 12.7 ~ 15.7 N.
