Hyundai Genesis (DH): Panorama Sunroof / Schematic Diagrams
Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Panorama Sunroof / Schematic Diagrams

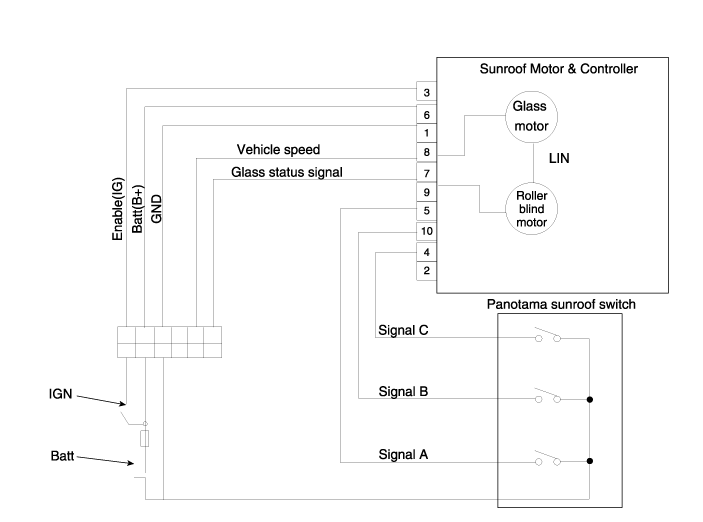

| Circuit Diagram |

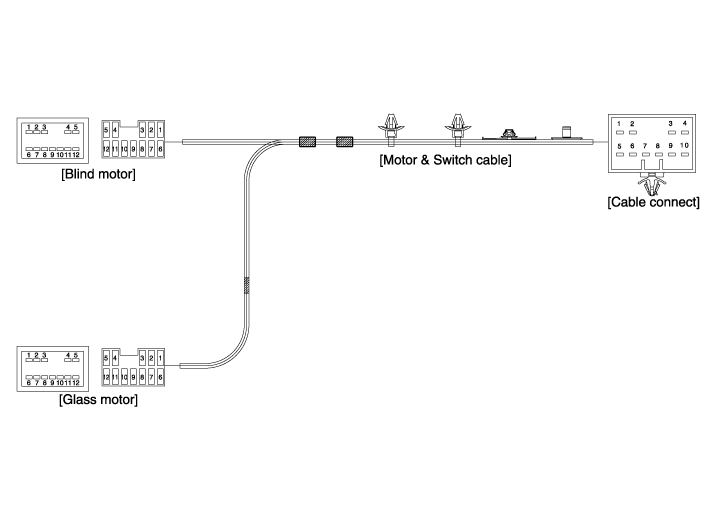

| NO. | Overhead console connector (10pin) | Panorama sunroof motor (12pin) | Roller blind motor (12pin) |
|
|
| |
| 1 | Ground | Ground 1 | Battery (+) |
| 2 | - | Glass status signal/ Parameter tool | - |
| 3 | IGN | GND | Ground |
| 4 | Signal C switch | LIN 1 | LIN 1 |
| 5 | Signal A switch | LIN2 | LIN 2 |
| 6 | Battery (+) | Signal B switch | - |
| 7 | Glass status signal/ Parameter tool | Signal C switch | - |
| 8 | Vehicle speed signal | Signal A switch | - |
| 9 | - | - | - |
| 10 | Signal B switch | - | - |
| 11 | ? | Vehicle speed signal | - |
| 12 | IGN | IGN |
Component Location 1. Panorama sunroof2. Panorama sunroof switch3. Panorama sunroof motor & controller4. Roller blind motor & slave controller
