Hyundai Genesis (DH): Panorama Sunroof / Components and Components Location

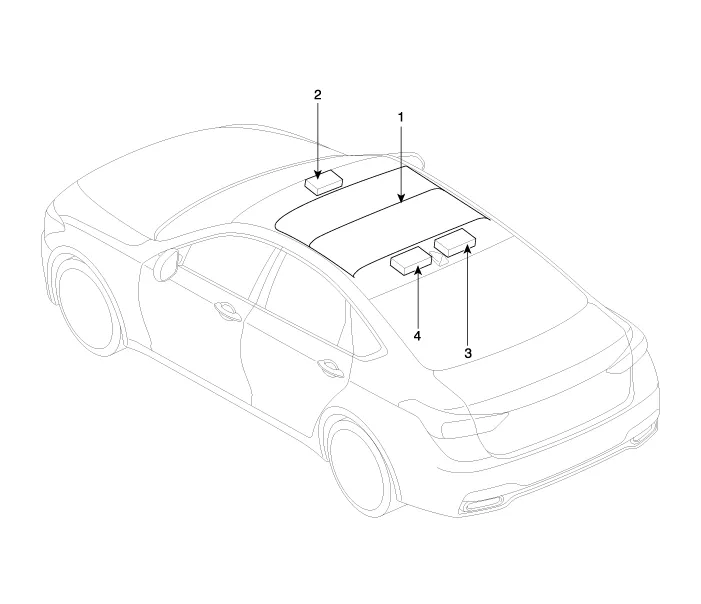

| Component Location |
| 1. Panorama sunroof 2. Panorama sunroof switch | 3. Panorama sunroof motor & controller 4. Roller blind motor & slave controller |
Circuit Diagram NO.Overhead console connector (10pin)Panorama sunroof motor (12pin)Roller blind motor (12pin)1GroundGround 1Battery (+)2-Glass status signal/ Parameter tool-3IGNGNDGround4Signal C switchLIN 1LIN 15Signal A switchLIN2LIN 26Battery (+)Signal B switch-7Glass status signal/ Parameter toolSignal C switch-8Vehicle speed signalSignal A switch-9---10Signal B switch--11?Vehicle speed signal-12IGNIGN
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Auto Head Lamp Leveling Unit Description and Operation
Description According to driving environment and loading state of vehicle, head lamp lighting direction is changed to keep the driver's visibility range and to protect the driver's vision from glare, aiming at safety driving. Sensor integrated ECU mounting on the rear center arm drives the actuator mounting on the head lamp since sens
Hyundai Genesis (DH) 2013-2016 Service Manual: Temperature Control Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the temperature control actuator connector. 3. Verify that the temperature control actuator operates to the warm (Driver's side) or cool (Passenger's side) position when connecting 12V to terminal 3 and grounding terminal 4.
