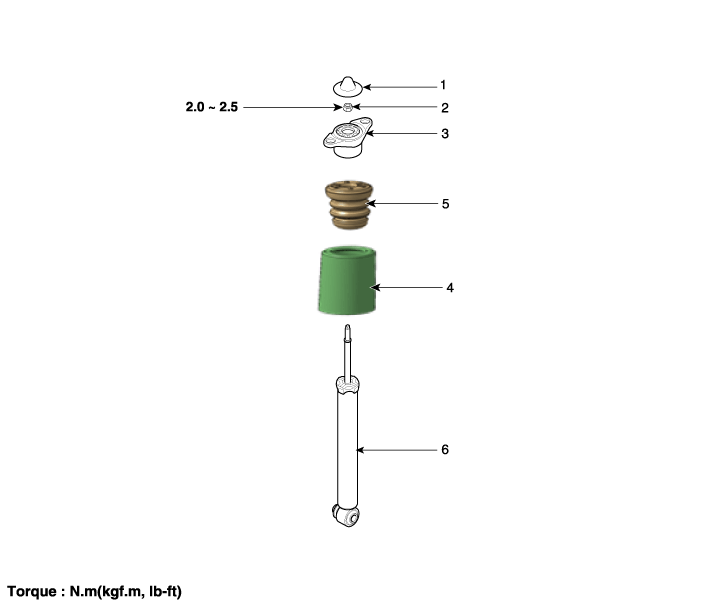

Components

1. Insulator cap
2. Lock nuts
3. Insulator assembly
4. Dust cover
5. Bumper stopper
6. Shock absorber

Components and Components Location
Components Location 1. Rear shock absorber2. Rear upper arm rear 3. Rear trailing arm4. Rear assist arm5. Rear sub frame6. Rear upper arm front7. Rear stabilizer bar8. Rear lower arm ...

Rear Shock Absorber Repair procedures
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel and tire (A) from the rear hub. Tightening torque: 88.3 ~ 10 ...
