Hyundai Genesis: Rear Seat / Rear Seat Cushion Cover Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Cushion Cover Components and Components Location

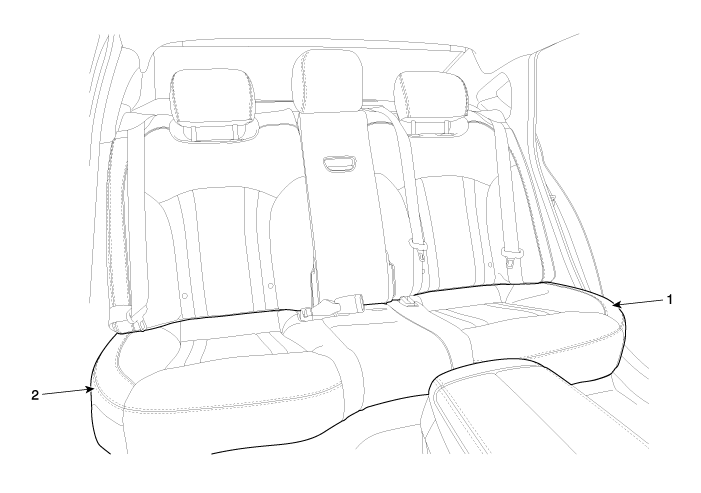

Component Location

1. Rear seat cushion cover [LH]
2. Rear seat cushion cover [RH]
