Hyundai Genesis: Light bulbs / Rear combination light bulb replacement

Hyundai Genesis (DH) 2013-2016 Owners Manual / Maintenance / Light bulbs / Rear combination light bulb replacement

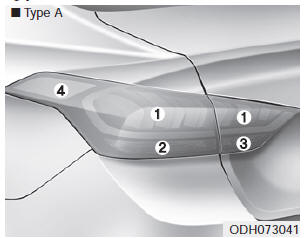

Type A

(1) Stop/tail light
(2) Turn signal light
(3) Back-up light
(4) Side marker

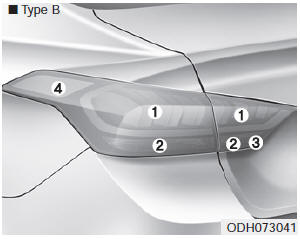

Type B

(1) Stop/tail light
(2) Turn signal light
(3) Back-up light
(4) Side marker

Rear turn signal lamp

Type A

1.Open the trunk lid.

2.Open the service cover.

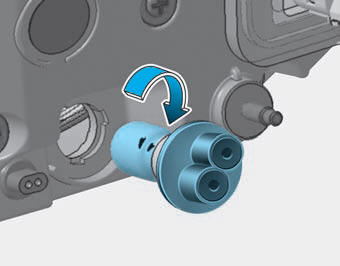

3.Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

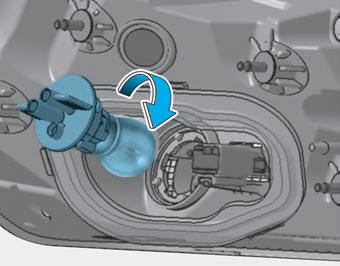

4.Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

5.Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

6.Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

7.Install the service cover by putting it into the service hole.

Type B

If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer.

Back up lamp

Type A

1.Open the trunk.

2.Loosen the retaining screw of the trunk lid cover and then remove the cover.

3.Remove the socket from the assembly by turning the socket counter clockwise until the tabs on the socket align with the slots on the assembly.

4.Remove the bulb by pulling it straight out.

5.Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

6.Install the socket into the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

7.Reinstall the trunk lid cover by pushing in the screw.

Type B

If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer.

Stop and tail lamp

If the lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer.

Side repeater lamp replacement
If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer. ...

High mounted stop lamp
If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer. ...
