Applying the parking brake
.jpg)

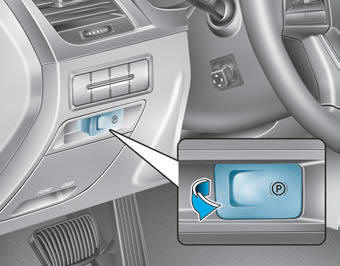

To apply the EPB (Electric Parking
Brake):
1.Depress the brake pedal.
2.Pull up the EPB switch.
Make sure the Parking Brake
Warning Light comes on.
Also, the EPB is applied automatically
if the [AUTO HOLD] switch is on
when the engine is turned off.
However, if you press the EPB switch
within one second after the engine is
turned off, the EPB will not be
applied.
WARNING
To reduce the risk of SERIOUS
INJURY or DEATH, do not operate
the EPB while the vehicle is
moving except in an emergency
situation. It could damage the
brake system and lead to an
accident.
Other information:
The paddle shifter is available when
the shift lever is in the D (Drive) position
or the sports mode.
With the shift lever in the D position
The paddle shifter will operate when
the vehicle speed is more than
6 mph (10 km/h).
Pull the [+] or [-] paddle shifter once
to shift up or down ...
