Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Power Trunk Module / Power Trunk Open/Close Switch Components and Components Location

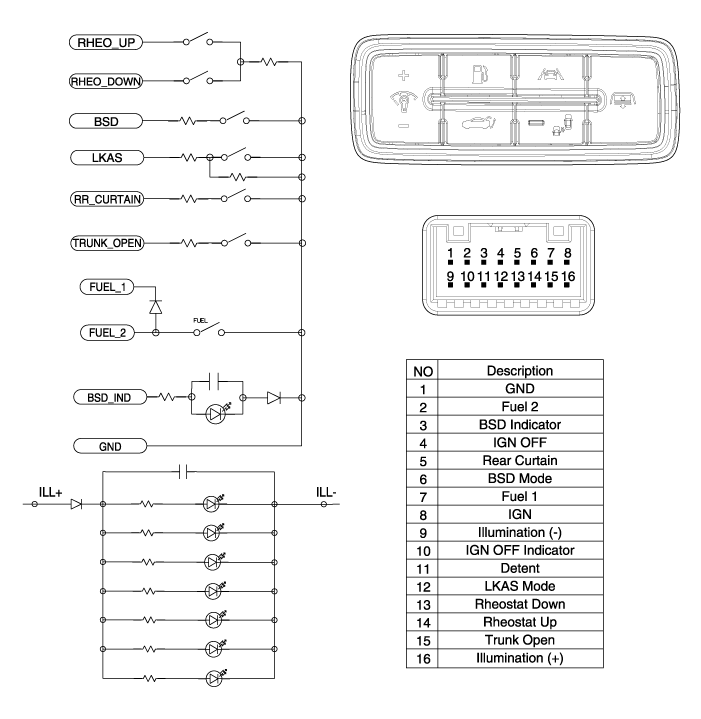

Components

Power Trunk Inner Switch Repair procedures
Inspection 1. Remove the trunk inner switch. 2. Check for continuity between terminals of the trunk inner switch. Removal 1. Disconnect the negative (-) battery terminal. 2. Remove th ...

Power Trunk Open/Close Switch Repair procedures
Inspection 1. Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 2. Check for continuity between terminals (A) of the power trunk switch. Removal 1. Disconnect t ...
