Hyundai Genesis: Power Trunk Module / Power Trunk Inner Switch Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Power Trunk Module / Power Trunk Inner Switch Components and Components Location

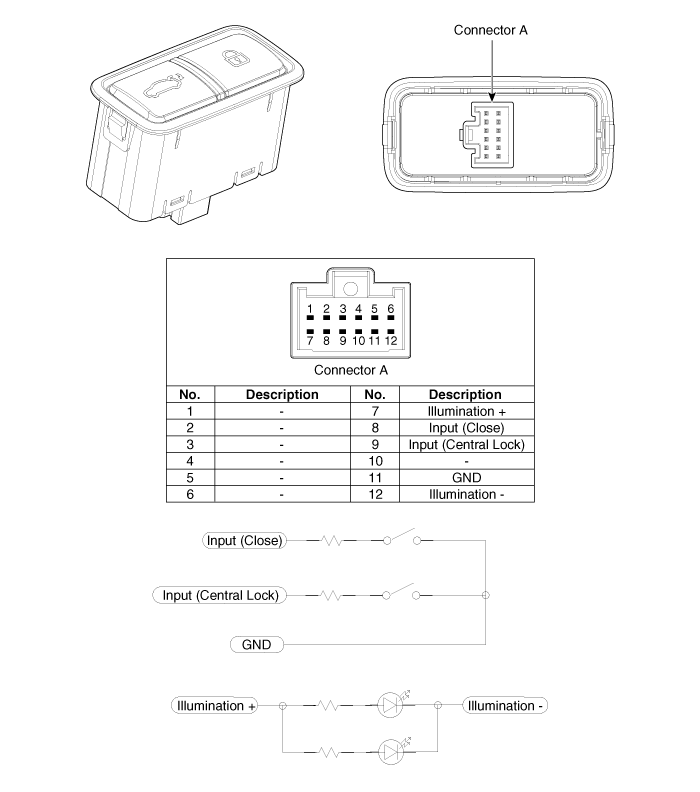

Component

Power Latch Assembly Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the trunk lid trim after opening the trunk. (Refer to Body - "Trunk Lid Trim") 3. Remove the power latch (A) after disco ...

Power Trunk Inner Switch Repair procedures
Inspection 1. Remove the trunk inner switch. 2. Check for continuity between terminals of the trunk inner switch. Removal 1. Disconnect the negative (-) battery terminal. 2. Remove th ...
