| Circuit Diagram |

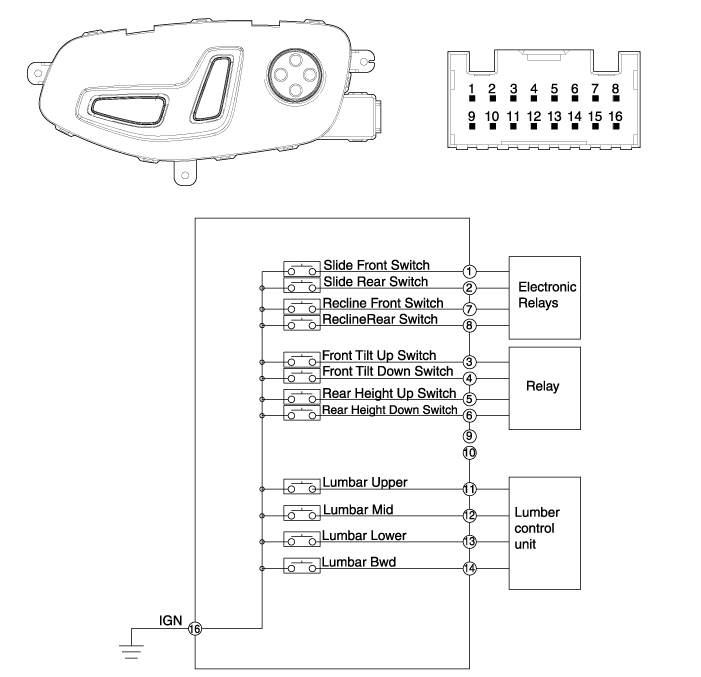

| [A type of driver's seat] |

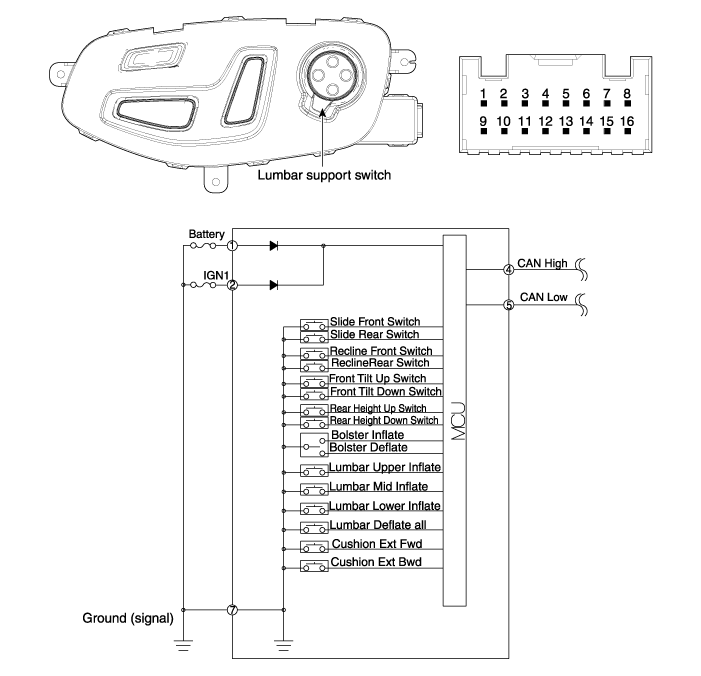

| [B type of driver's seat] |

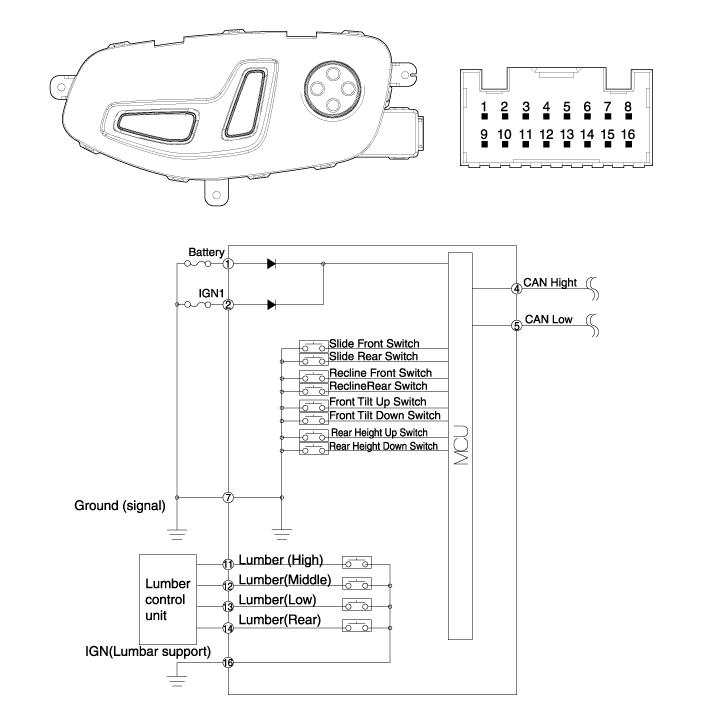

| [C type of driver's seat] |

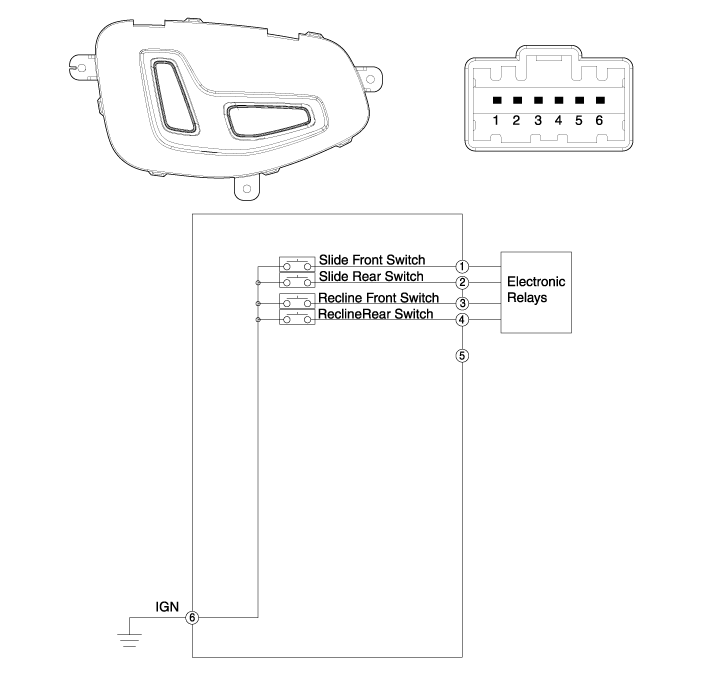

| [D type of driver's seat] |

| [A type Assist] |

| [B type Assist] |

| [C type Assist] |

Removal Air lumbar support and bolster assembly 1. Disconnect the negative (-) battery terminal. 2. Remove the front seat back cover. (Refer to Body - "Front Seat Back Cover") 3.
Inspection 1. Power seat switch sends/receives signals via CAN communication so it is impossible to check the electric current of switch components.
Removal 1. Disconnect the negative (-) battery terminal. 2. After loosening the nuts (4EA) holding the rear combination lamp and disconnecting the connector (A), remove the outside rear combination lamp assembly. 3. Remove the bulb (A) after turning it in the counter clock-wise direction.
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the intake actuator connector. 3. Verify that the intake actuator operates to the fresh position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the intake actuator operates to the recirculation position when connected in reverse.
