Hyundai Genesis (DH): Power Door Mirrors / Power Door Mirror Switch Schematic Diagrams

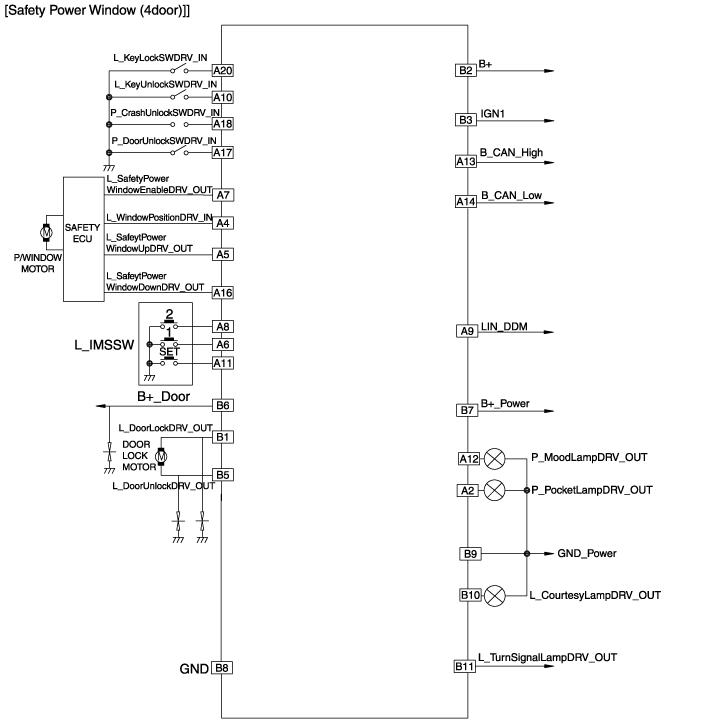

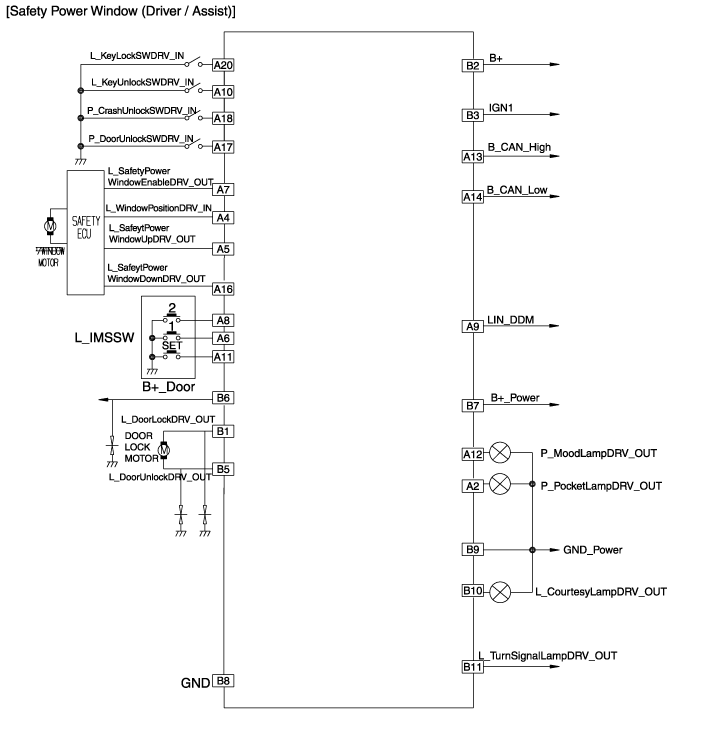

| Circuit Diagram |
Inspection Diagnosis With GDS 1. In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (GDS). (1) Checking failure and code number (DCT) (2) Current data : Checking the system input/output data state (3) Actuation test : Checking the system operation condition (4) Additional function : Controlling other features including system option setting and zero point adjustment 2.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Rear Combination Lamp Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. After loosening the nuts (4EA) holding the rear combination lamp and disconnecting the connector (A), remove the outside rear combination lamp assembly. 3. Remove the bulb (A) after turning it in the counter clock-wise direction.
Hyundai Genesis (DH) 2013-2016 Service Manual: In-car Sensor Description and Operation
Description An in-car air temperature sensor is located in the crash pad lower panel. The sensor contains a thermistor which measures the temperature of the cabin. The signal determined by the resistance value which changes in accordance with perceived inside temperature, is delivered to the heater control unit and according to this signa
