Hyundai Genesis (DH): Automatic Transmission Control System / Output Speed Sensor Schematic Diagrams

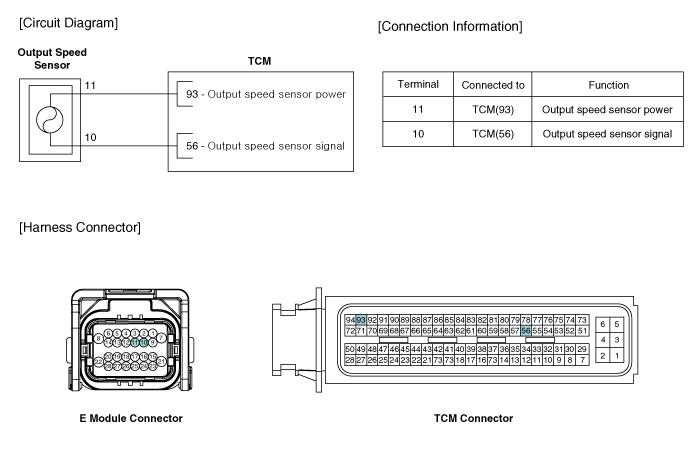

| Circuit Diagram |
Specifications ? Type: Hall Effect Sensor ? Specifications Operation condition (
Inspection 1. Check signal waveform of output speed sensor using the GDS. Specification: Refer to "Signal Wave Form" section.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Description and Operation
Description Integrated Rain Sensor Integrated rain sensor (A) controls three systems: front wiper, auto-light, and central air conditioner. 1. Wiper Control System When "AUTO" switch signal is received from the multi-function switch on the right, the integrated rain sensor detects the amount of rainfall.
Hyundai Genesis (DH) 2013-2016 Service Manual: In-car Sensor Description and Operation
Description An in-car air temperature sensor is located in the crash pad lower panel. The sensor contains a thermistor which measures the temperature of the cabin. The signal determined by the resistance value which changes in accordance with perceived inside temperature, is delivered to the heater control unit and according to this signa
