Removal and Installation
LH Front Muffler
1.
Disconnect the battery "-" terminal from the trunk room.
2.
Disconnect the LH rear oxygen sensor connector (A).

3.
Remove the transmission stay bracket (A) and LH front muffler (B).
Tightening torque :
39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)

4.
To install, reverse the removal procedure.
RH Front Muffler
1.
Disconnect the battery "-" terminal from the trunk room.
2.
Disconnect the RH rear oxygen sensor connector (A).

3.
Remove the transmission stay bracket (A) and RH front muffler (B).
Tightening torque :
39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)

4.
To install, reverse the removal procedure.
Center Muffler
1.
Disconnect the battery "-" terminal from the trunk room.
2.

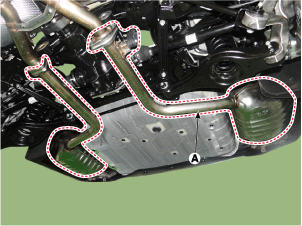

Remove the center muffler (A).
Tightening torque :
39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)

3.
To install, reverse the removal procedure.
LH Rear Muffler
1.
Disconnect the battery "-" terminal from the trunk room.
2.
Remove the LH rear muffler (A).
Tightening torque :
39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)

3.
To install, reverse the removal procedure.
RH Rear Muffler
1.
Disconnect the battery "-" terminal from the trunk room.
2.
Remove the RH rear muffler (A).
Tightening torque :
39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)

3.
To install, reverse the removal procedure.
Muffler Components and Components Location
Components 1. Front muffler2. Center muffler3. Rear muffler4. Hanger5. Gasket ...
