Hyundai Genesis: Intake And Exhaust System / Muffler Components and Components Location

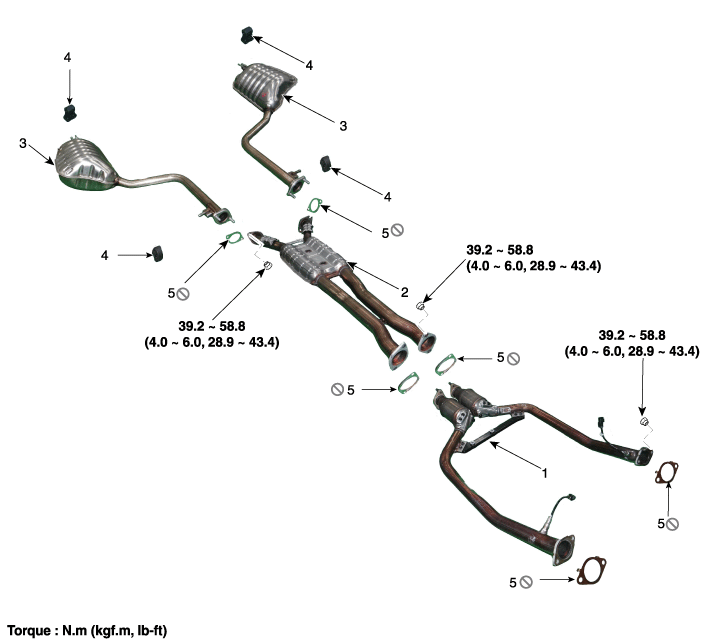

Components

1. Front muffler
2. Center muffler
3. Rear muffler
4. Hanger
5. Gasket

Exhaust Manifold Repair procedures
Removal and Installation LH Exhaust Manifold 1. Disconnect the battery "-" terminal from the trunk room. 2. Loosen the drain plug and drain the engine coolant. (Refer to Cooling System - "Co ...

Muffler Repair procedures
Removal and Installation LH Front Muffler 1. Disconnect the battery "-" terminal from the trunk room. 2. Disconnect the LH rear oxygen sensor connector (A). 3. Remove the transmission s ...
