Hyundai Genesis (DH): Automatic Transmission Control System / Middle Speed Sensor Schematic Diagrams

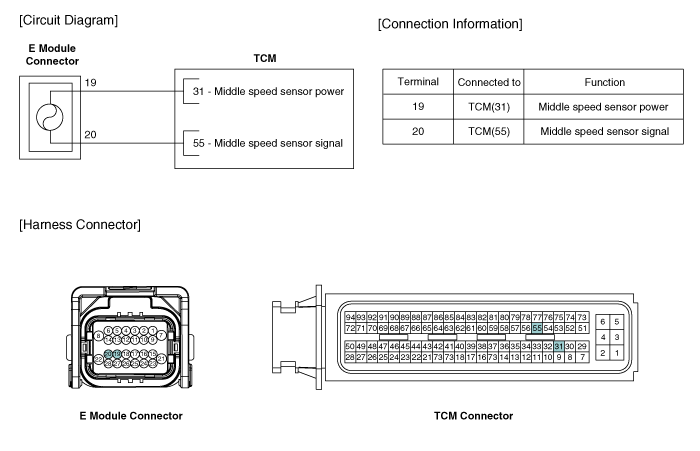

| Circuit Diagram |
Specifications ? Type: Hall Effect Sensor ? Specifications Operation condition (
Inspection 1. Check signal waveform of middle speed sensor using the GDS. Specification: Refer to "Signal Wave Form" section.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Photo Sensor Description and Operation
Description The photo sensor is located in the right side of the inside rearview mirror. he integrated rain sensor is located in the right side of the inside rearview mirror. The integrated rain sensor is a multifunctional sensor which combines the photo sensor and auto light sensor, and has a built-in photovoltaic diode (for detecting t
Hyundai Genesis (DH) 2013-2016 Service Manual: Intake Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the intake actuator connector. 3. Verify that the intake actuator operates to the fresh position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the intake actuator operates to the recirculation position when connected in reverse.
