Hyundai Genesis (DH): Automatic Transmission Control System / Input Speed Sensor Schematic Diagrams

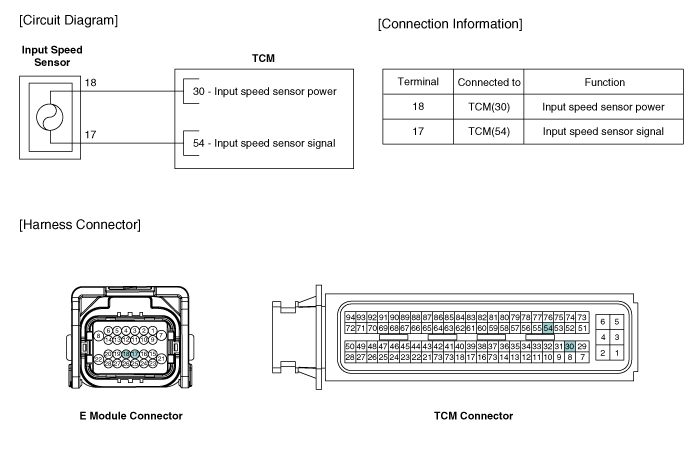

| Circuit Diagram |
Specifications ? Type: Hall Effect Sensor ? Specifications Operation condition (
Inspection 1. Check signal waveform of Input speed sensor using the GDS. Specification: Refer to "Signal Wave Form" section.
