Hyundai Genesis (DH): Tires/Wheels / Wheel Repair procedures

Hyundai Genesis (DH) 2013-2016 Service Manual / Suspension System / Tires/Wheels / Wheel Repair procedures

Wheel Runout
1.
Jack up the vehicle and support it with jack stands.
2.

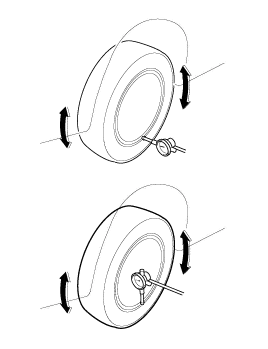

Measure the wheel runout with a dial indicator as illustrated.
3.
Replace the wheel if the wheel runout exceeds the limit.
Limit
Radial
Axial
Runout mm
Aluminum
0.3
0.3

Wheel Nut Tightening
1.
Tightening torque.
Tightening torque :
90 ~ 110N.m (9 ~ 11kgf.m, 65.1 ~ 79.5lb-ft)

When using an impact gun, final tightening torque should be checked using a torque wrench.
2.
Tightening order.
Tighten the nuts by applying equal torque to each of them, according to the tightening order.



    Inspection When using a wheel alignment tester to check the alignment of the wheels, make sure that the vehicle is horizontal and the front wheels are pointing straight ahead.
