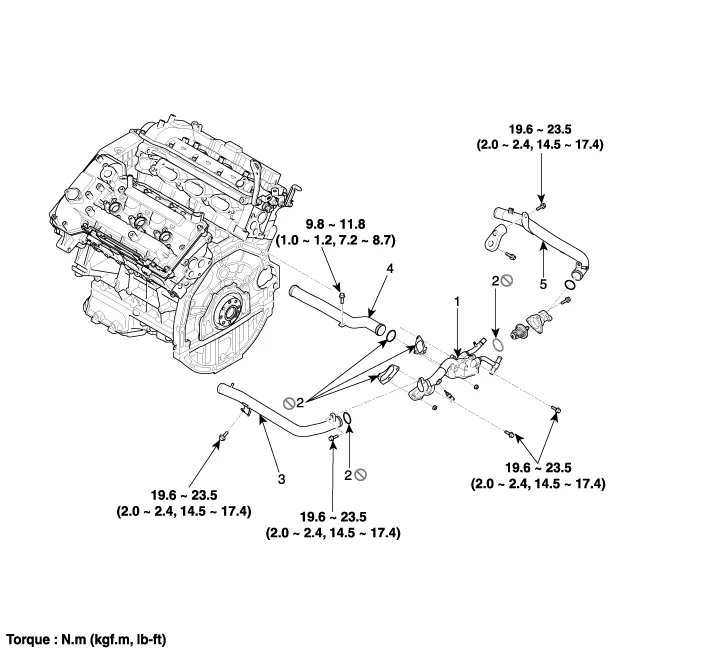

Components

1. Water temperature control assembly
2. O-ring
3. Water outlet pipe
4. Water center pipe
5. Water inlet pipe

    Removal and Installation 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine cover. 3. Remove the engine room cover.

    Removal and Installation Water Temperature Control Assembly 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine room under cover.

    Other information:

    Hyundai Genesis (DH) 2013-2016 Service Manual: Blind Spot Detection Switch Repair procedures

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad") 3. Remove the blind spot detection (BSD) switch (A) after disengaging the mounting clip. Installation 1. Install the crash pad side switch assembly after connecting the connector.

    Hyundai Genesis (DH) 2013-2016 Service Manual: Receiver-Drier Repair procedures

    Replacement 1. Remove the condenser. 2. Remove the cap (B) on the bottom of the condenser with the L wrench (A). Tightening torque : 9.81 ~ 14.71 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft) 3. Remove the receiver-drier (A) from condenser using a long nose plier.
