Hyundai Genesis (DH): Transfer Assembly / Transfer Case Assembly Components and Components Location
| Components Location |

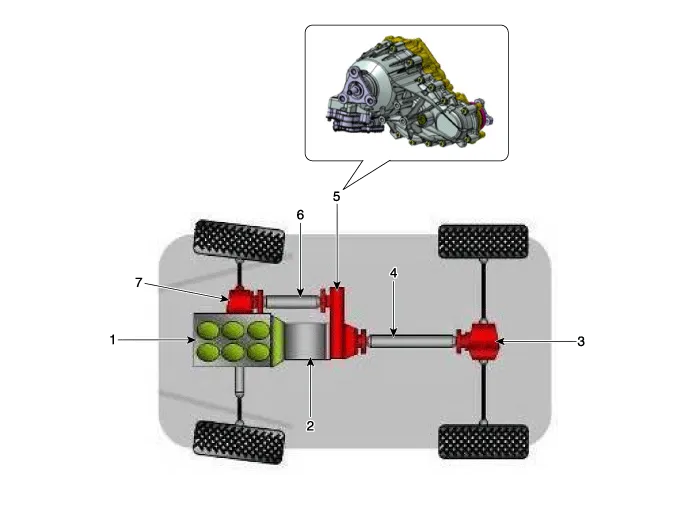

| 1. Engine 2. Transmission 3. Rear differential 4. Rear propeller shaft | 5. Transfer case 6. Front propeller shaft 7. Front differential |
Removal In case of replacing the controller (ECU) and transfer case due to changing characteristics of the frictional materials inside the transfer case, it is necessary to check and enter the calibration data.
