Hyundai Genesis (DH): IMS(Integrated Memory System) / Tilt & Telescope Control (SCM) Repair procedures
| Inspection |
| 1. |
You can turn ON/OFF of IMS tilt & telescope control option with the user option program. |
| 2. |
Select model and "body control module" menu. |
| 3. |

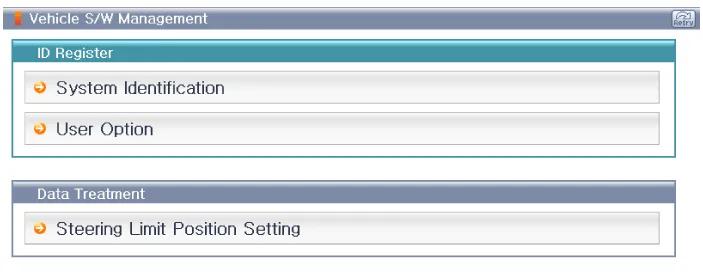

Select the "Steering Limit Position Setting".
|
| 4. |

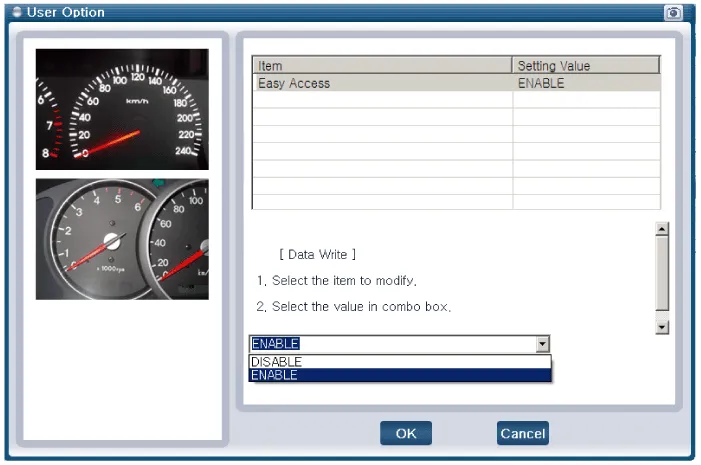

Select the "ENABLE".
|
Circuit Diagram NO.Function (Connector A)NO.Function (Connector B)1B+ (ECU)1Tele motor backward (tele in)2Sensor VCC2Tilt motor up3Tilt sensor3Tilt motor down4Tele sensor4Tele motor forward (tele out)5Tilt up switch5Power GND6Tele backward (tele in) 5W6-7-7Power B+8B_CAN_High8-9B_CAN_Low9-10ECU GND10-11IGN111-12Sensor GND12-13-13-14-14-15Tilt down switch15-16Tele forward (tele out) switch16-17-17-18-18-19-19-20-20-
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Console Temperature Control Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the console temperature control actuator connector. 3. Verify that the console temperature control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.
Hyundai Genesis (DH) 2013-2016 Service Manual: Power Mosfet Repair procedures
Inspection 1. Turn the ignition switch ON. 2. Manually operate the control switch and control the voltage of the blower motor. 3. Select the control switch to raise the voltage until high speed. Specification Fan Speed (Manual)Motor Voltage (V)13.
