Hyundai Genesis (DH): IMS(Integrated Memory System) / Tilt & Telescope Control (SCM) Schematic Diagrams

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / IMS(Integrated Memory System) / Tilt & Telescope Control (SCM) Schematic Diagrams

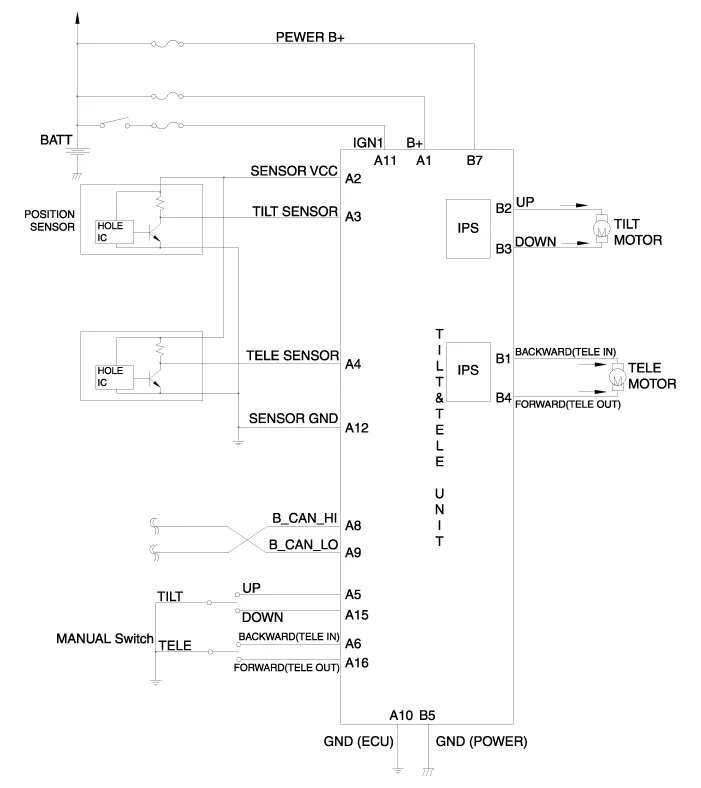

Circuit Diagram

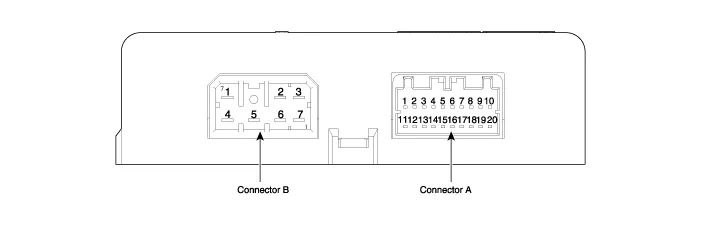

NO.
Function (Connector A)
NO.
Function (Connector B)
1
B+ (ECU)
1
Tele motor backward (tele in)
2
Sensor VCC
2
Tilt motor up
3
Tilt sensor
3
Tilt motor down
4
Tele sensor
4
Tele motor forward (tele out)
5
Tilt up switch
5
Power GND
6
Tele backward (tele in) 5W
6
-
7
-
7
Power B+
8
B_CAN_High
8
-
9
B_CAN_Low
9
-
10
ECU GND
10
-
11
IGN1
11
-
12
Sensor GND
12
-
13
-
13
-
14
-
14
-
15
Tilt down switch
15
-
16
Tele forward (tele out) switch
16
-
17
-
17
-
18
-
18
-
19
-
19
-
20
-
20
-

    Description The Tilt & Telescope operation function in SCM contains of the following function. 1. Manual control with direction switches (Tilt Up/Down, Telescope Forward/Backward).

    Inspection Ims Mode Setting With GDS 1. You can turn ON/OFF of IMS tilt & telescope control option with the user option program. 2. Select model and "body control module" menu.
