Hyundai Genesis (DH): Brake System / Stop Lamp Switch Repair procedures

Hyundai Genesis (DH) 2013-2016 Service Manual / Brake System / Brake System / Stop Lamp Switch Repair procedures

Adjustment
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the lower crash pad.
(Refer to Body - "Crash Pad")
3.
Remove the knee airbag.
(Refer to Restraint - "Air Bag Module")
4.
Confirm the gap between stop lamp switch and bracket.
Stop lamp clearance : 1.0 ~ 2.0 mm (0.04~ 0.08 in.)

5.
If the gap between stop lamp switch and bracket is less than 1.0~2.0mm(0.04~0.08in), check the mounting clip and other parts around the stop lamp.
6.
If normal, remove the stop lamp switch and then install again.
Inspection
1. Fuse inspection
Mount the test fuse to the switch fuse and relay fuse part to confirm a normal joint fit.

2. GDS Data Analysis
1.
Analyze GDS data and check if there is anything wrong with the stop lamp switch.
(1)
Connect the GDS to the self-diagnosis connector.
(2)
Turn the spark switch on
(3)
Step on the brake pedal.
(4)
Inspect the "brake switch" category that displays the "sensor data" GDS.)
Normal waveform : The pressure sensor signal value will change according to the brake ON/OFF switch.

3. Connection Inspection by Part
Check to see whether or not each connector has been damaged, or terminal surge, or incomplete connection has taken place
[Engine room junction box]

[Stop signal electronic module]

[ABS/VDC control module]

4. Inspect the stop lamp circuit
Connect a probe to each terminal wire and confirm oscilloscope waveform.
[Stop lamp switch input/output]

[Stop signal electronic module input/output]

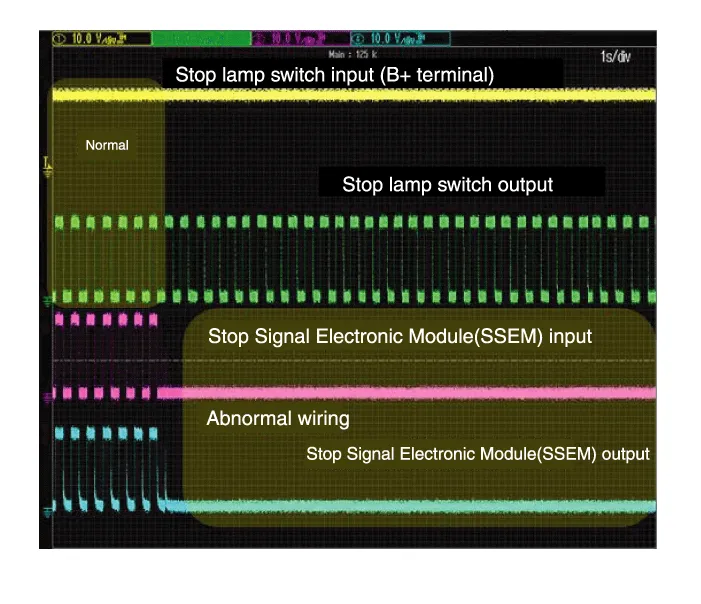

[Oscilloscope waveform screen]

Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the lower crash pad.
(Refer to Body - "Crash Pad")
3.
Remove the knee airbag.
(Refer to Restraint - "Air Bag Module")
4.
Disconnect the stop lamp switch connector (A).

5.
Pull the locking plate (A) as indicated by the arrow.

6.
Turn stop lamp switch 45

    Troubleshooting 1. Part diagnosis Items Cause Symptom RemedySwitch fuse Faulty fuse connection, Damaged fuse - DTC Code : P0504 - Symptom : Shifting gear trouble, Starting failure, Cruise control function cancelation trouble, EPB function cancelation trouble, Stop lamp lighting trouble, ESP OFF light illuminated.

    Components 1. Stop signal electronic module (SSEM)
