Hyundai Genesis (DH): Premium AVN System / Steering Wheel Remote Controller (SWRC) Schematic Diagrams
| Circuit Diagram |

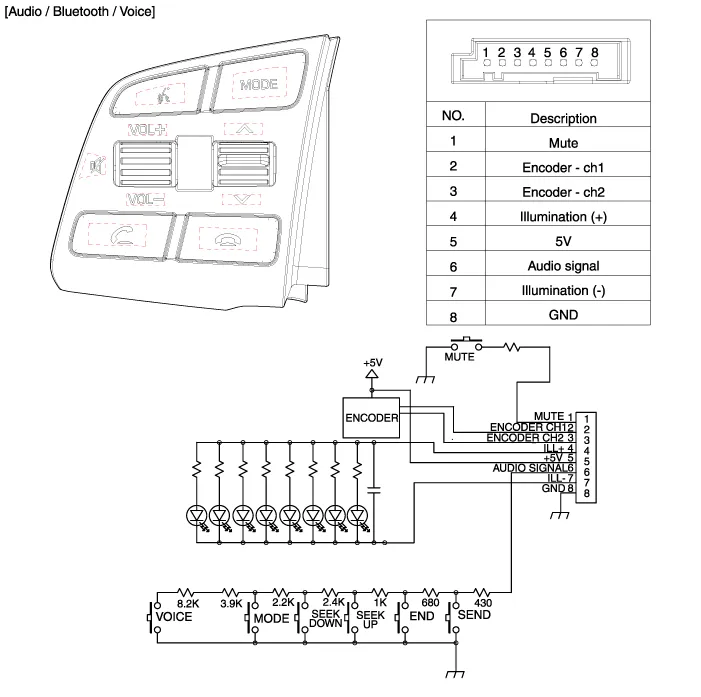

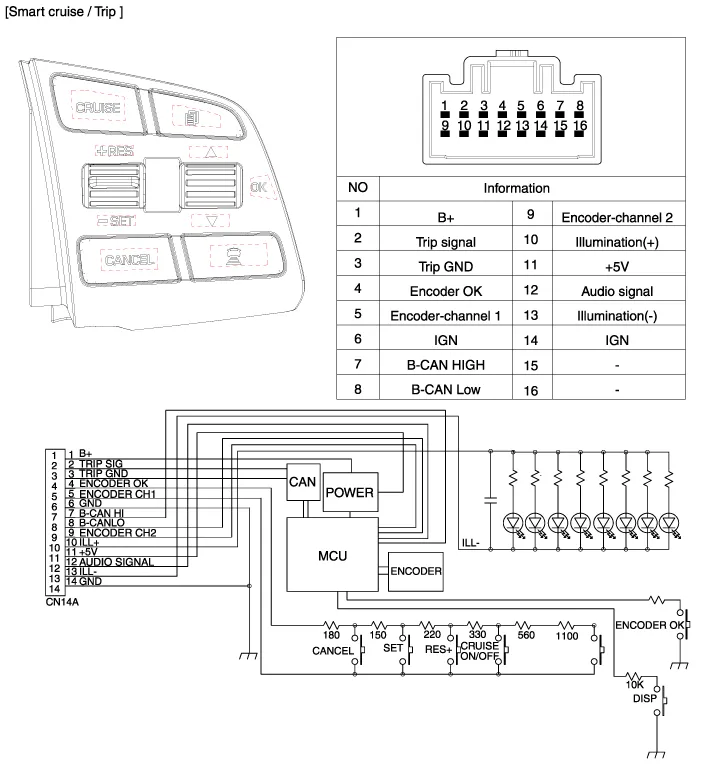

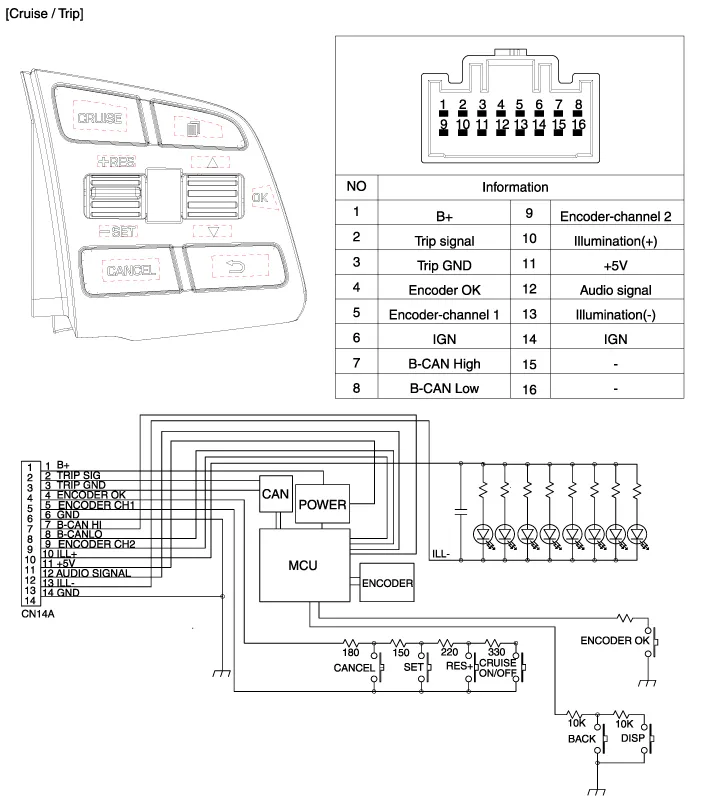

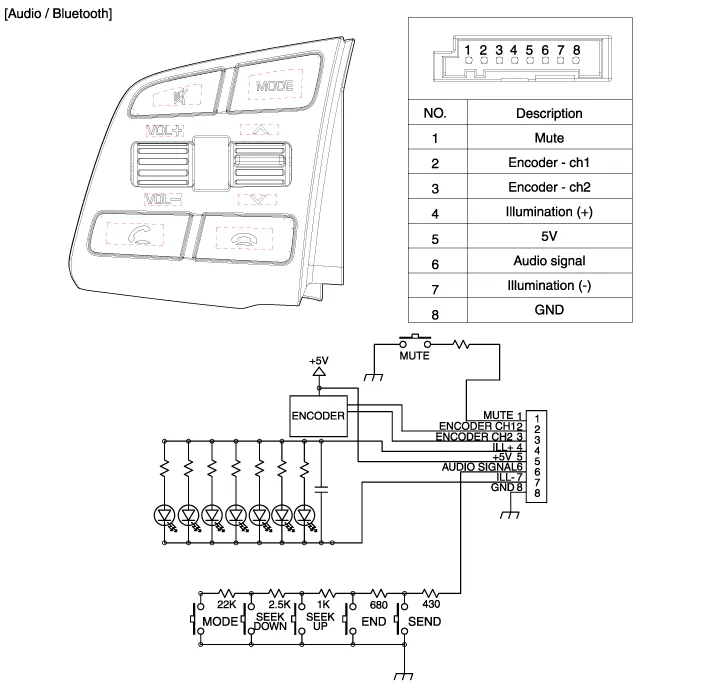

Components 1. Left Top Remote Control Switch(Audio)2. Right Top Remote Control Switch(Cruise+Trip Computer)
Inspection Steering Wheel Remote Control system (SWRC) can be diagnosed by GDS because it receives and sends signals through CAN communication.
