Hyundai Genesis (DH): Motor Driven Power Steering / Steering Gear box Components and Components Location
| Components Location |
| [4WD] |

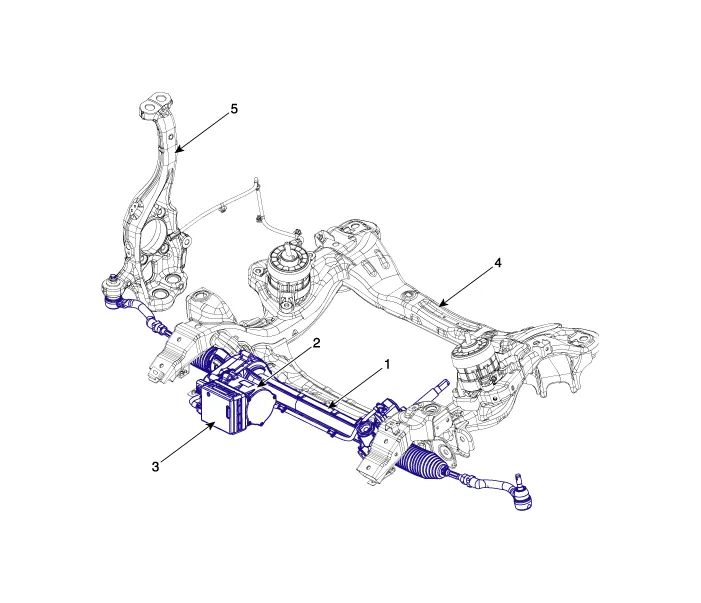

| 1. Steering gear box 2. Motor 3. ECU | 4. Sub frame 5. Knuckle |
| [2WD] |

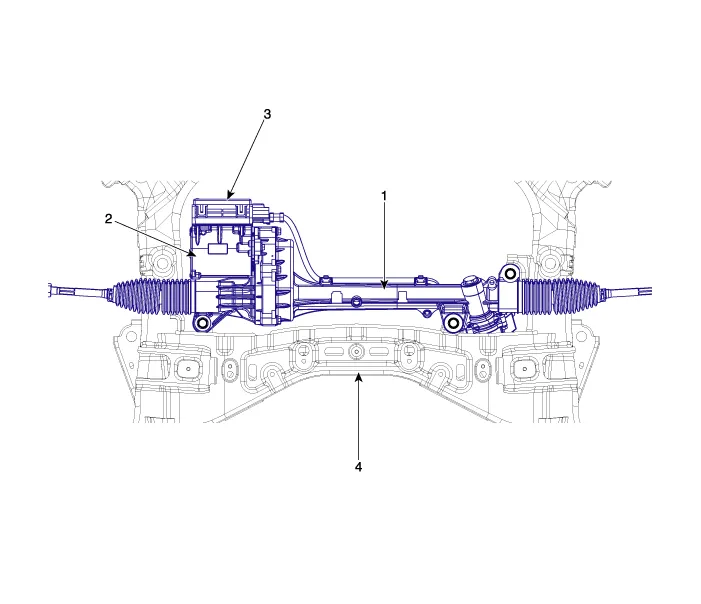

| 1. Steering gear box 2. Motor | 3. ECU 4. Sub frame |
Replacement 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2. Turn the steering wheel so that the front wheels are placed in the straight ahead position.
Replacement [LHD] 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel and tire (A) from the front hub.
