Hyundai Genesis (DH): Starting System / Starter Components and Components Location

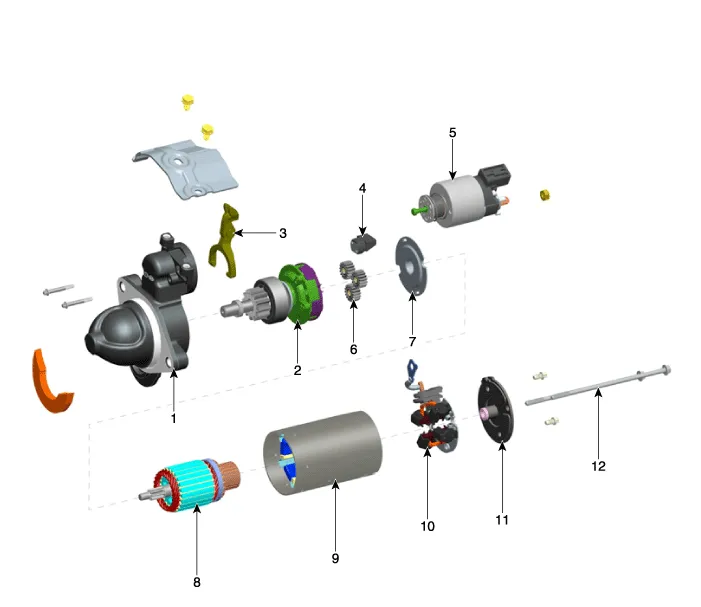

| Components |
| 1. Front bracket 2. Planet gear shaft assembly 3. Lever 4. Lever packing 5. Magnet switch 6. Planet gear | 7. Shield 8. Armature assembly 9. York assembly 10. Brush holder assembly 11. Rear bracket 12. Through bolt |
Specification ItemSpecificationRated voltage12 V, 1.7 kWThe number of pinion teeth12Performance[No-load, 11.5 V]AmpereMax. 105 ASpeedMin. 2,550 rpm
Circuit Diagram
