Hyundai Genesis (DH): SRSCM / Seat Belt Buckle Switch (BS) Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Restraint / SRSCM / Seat Belt Buckle Switch (BS) Components and Components Location

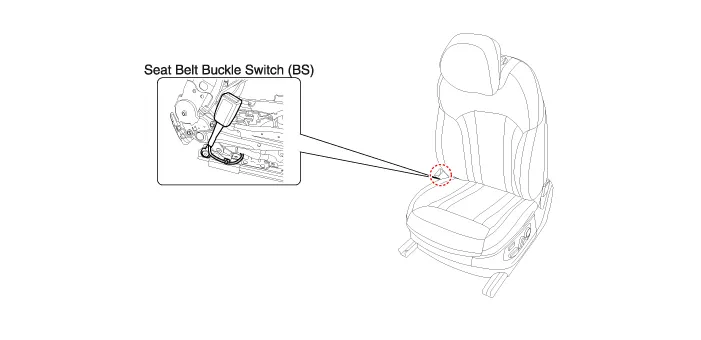

Components

    Description The SRSCM monitors the status of the driver and front passenger seat belt buckle. The SRSCM provides one pin each for the driver and front passenger seat belt buckle status input.

    Removal 1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2. Remove the front seat assembly.
