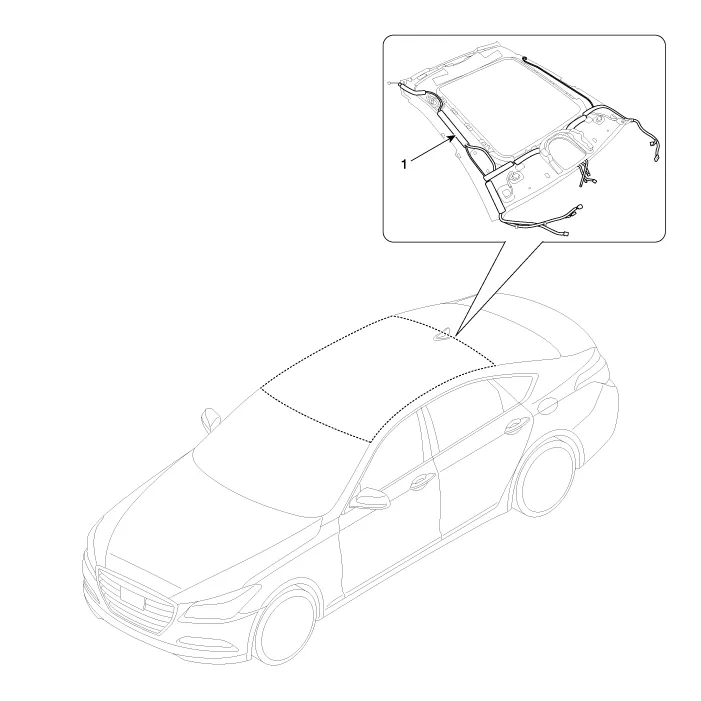

Hyundai Genesis (DH): Roof Trim / Roof Trim Assembly Components and Components Location

Other information:

Hyundai Genesis (DH) 2013-2016 Service Manual: A/C Pressure Transducer Description and Operation

Description The A/C Pressure Transducer (APT) converts the pressure value of high-pressure line into voltage value after measuring it. By converted voltage value, engine ECU controls the cooling fan by operating it at high speed or low speed.

Hyundai Genesis (DH) 2013-2016 Service Manual: Intake Actuator Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the intake actuator connector. 3. Verify that the intake actuator operates to the fresh position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the intake actuator operates to the recirculation position when connected in reverse.
