Hyundai Genesis (DH): Rear Seat Belt / Rear Seat Belt Buckle Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Seat Belt Buckle Components and Components Location

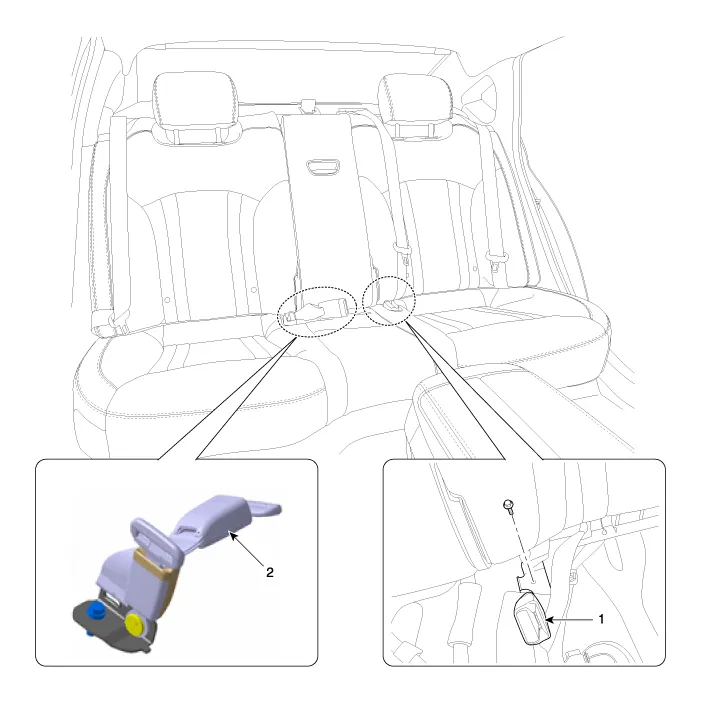

Component Location

1. Rear seat belt buckle [RH]
2. Rear seat belt buckle [LH]

    Replacement

    Replacement 1. Remove the rear seat cushion assembly. (Refer to Rear Seat - "Rear Seat Assembly") 2. Loosen the mounting bolt, and then remove the rear seat belt buckle (A).
