Hyundai Genesis (DH): Differential Carrier Assembly / Rear Differential Carrier Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Driveshaft and axle / Differential Carrier Assembly / Rear Differential Carrier Components and Components Location

Component

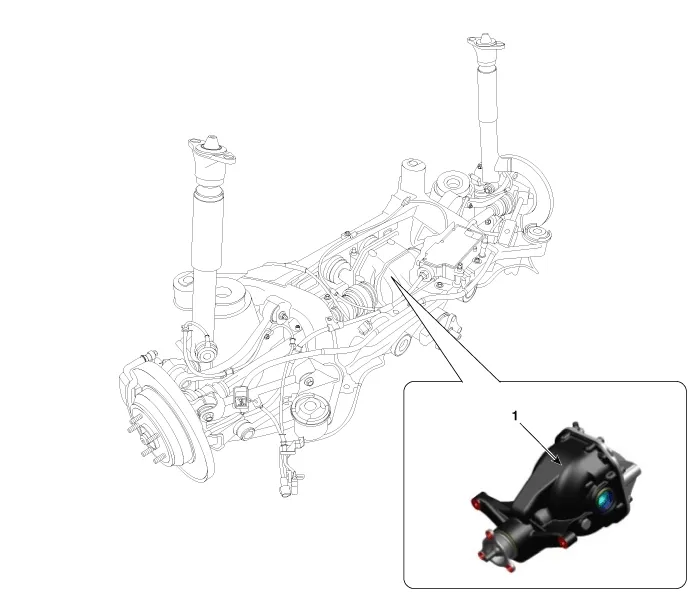

1. Rear differential carrier assembly

Component

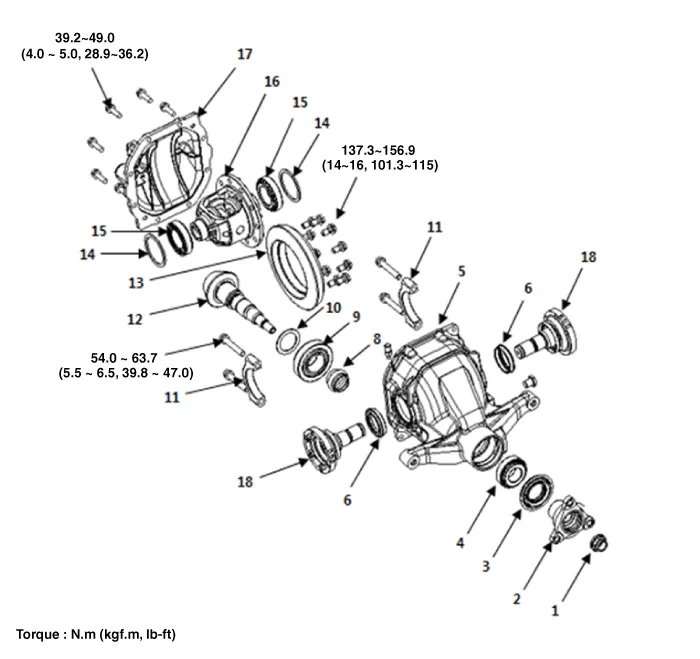

[With Lambda Engine]

1. Pinion lock nut
2. Companion flange
3. Pinion oil seal
4. Pinion front bearing
5. Differential carrier
6. Side oil seal
7. Drain plug
8. Pinion bearing spacer
9. Pinion rear bearing
10. Inner bearing adjustment shims
11. Bearing cap
12. Drive gear
13. Ring gear
14. Spacer
15. Side bearing outer race
16. Differential case assembly
17. Differential rear cover
18. Companion shaft

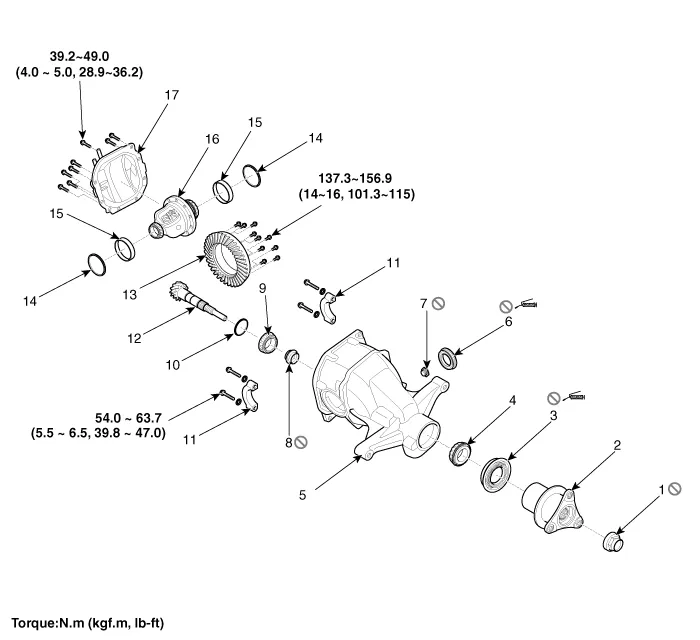

[With Tau Engine]

1. Pinion lock nut
2. Companion flange
3. Pinion oil seal
4. Pinion front bearing
5. Differential carrier
6. Side oil seal
7. Drain plug
8. Pinion bearing spacer
9. Pinion rear bearing
10. Inner bearing adjustment shims
11. Bearing cap
12. Drive gear
13. Ring gear
14. Spacer
15. Side bearing outer race
16. Differential case assembly
17. Differential rear cover

    Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported 2. Remove the front wheel and tire (A) from the front hub.

    Removal 1. Remove the rear wheel and tire (A) from the rear hub. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)     Be careful not to damage the hub bolts when removing the rear wheel and tire (A).
