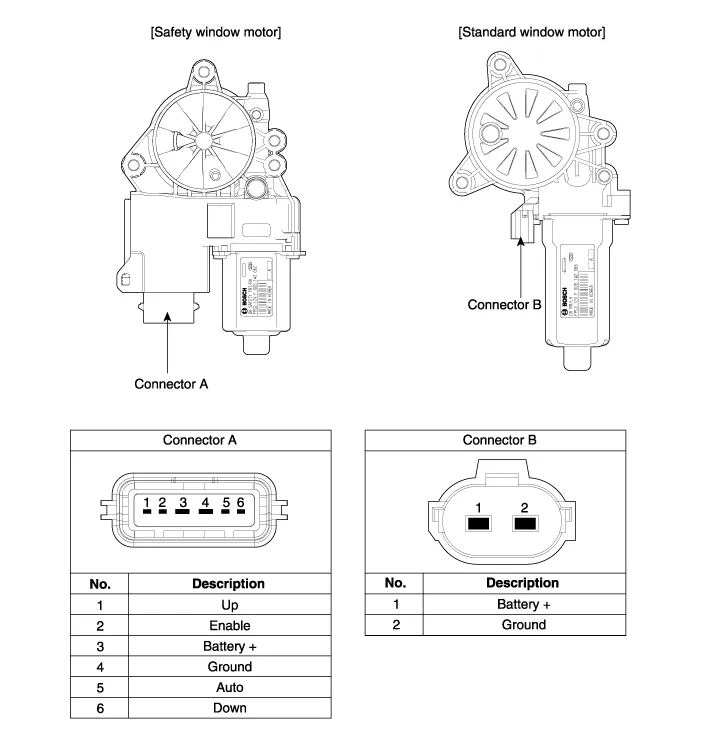

Components

    Safety Function of Power Window When driver door power window auto-up switch is operated, safety function is activated. 1. Safety function condition When the force of 100N (using the 10N/mm spring) is detected while the window is rising, the window is pulled down.

    Circuit Diagram
