Hyundai Genesis (DH): Power Door Mirrors / Power Door Mirror Actuator Components and Components Location

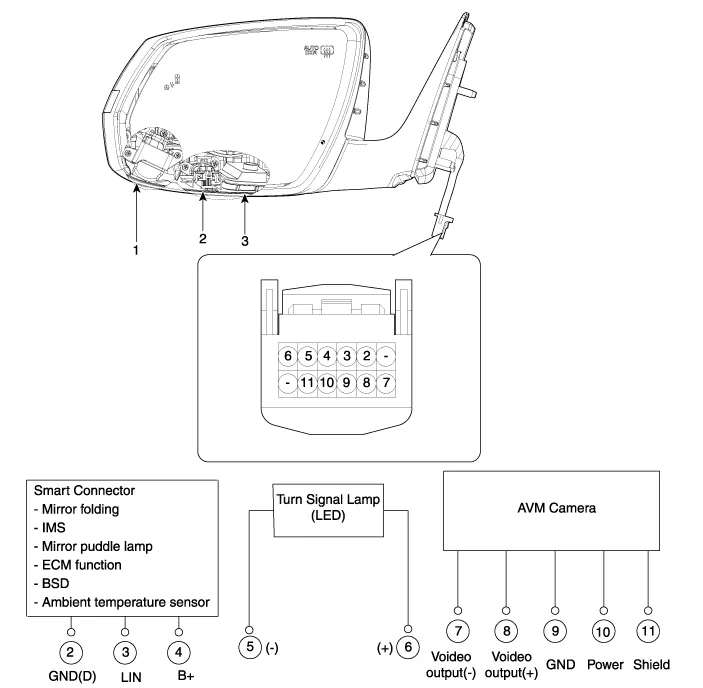

| Components |
| 1. AVM Camera 2. Ambient temperature sensor | 3. Puddle lamp |
Inspection Diagnosis With GDS 1. In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (GDS). (1) Checking failure and code number (DCT) (2) Current data : Checking the system input/output data state (3) Actuation test : Checking the system operation condition (4) Additional function : Controlling other features including system option setting and zero point adjustment 2.
Inspection 1. Disconnect the negative (-) battery terminal. 2. Disconnect the connector (B) after removing the front door frame inner cover (A).
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Head Up Display Unit Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the head up display bezel (A). 3. Remove the instrument cluster. (Refer to Indicators And Guages - "Instrument Cluster") 4. Remove the head up display unit bracket (A) after loosening the mounting nuts.
Hyundai Genesis (DH) 2013-2016 Service Manual: Auto Defogging Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the auto defogging connector. 3. Verify that the auto defogging actuator operates to the open position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the auto defogging actuator operates to the close position when connected in reverse.
