Hyundai Genesis (DH): Cylinder Block / Piston and Connecting Rod Components and Components Location

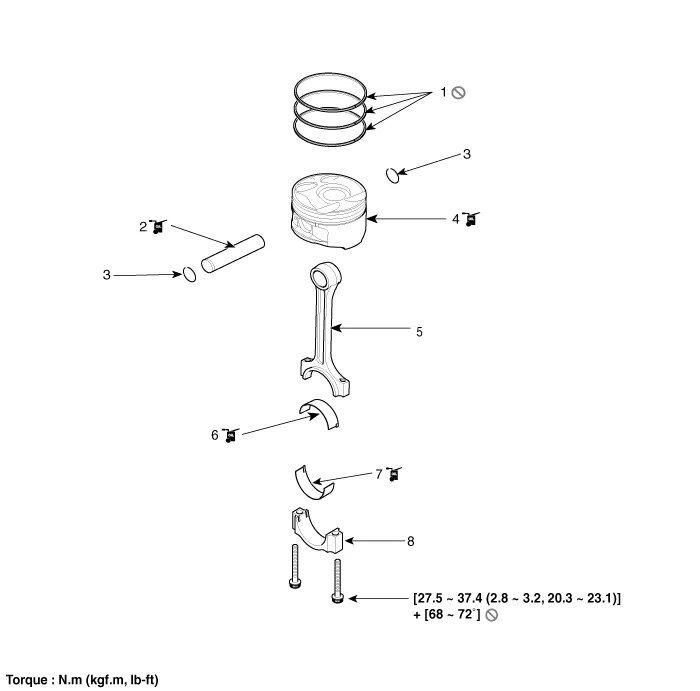

| Components |
| 1. Piston ring 2. Piston pin 3. Snap ring 4. Piston | 5. Connecting rod 6. Connecting rod upper bearing 7. Connecting rod lower bearing 8. Connecting rod bearing cap |
Removal 1. Remove the drive plate and adapter plate. (Refer to Cylinder Block - "Drive Plate") 2. Remove the rear oil seal (A). Installation 1.
Disassembly
