Hyundai Genesis (DH): Airbag Module / Passenger Airbag (PAB) Module Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Restraint / Airbag Module / Passenger Airbag (PAB) Module Components and Components Location

Components

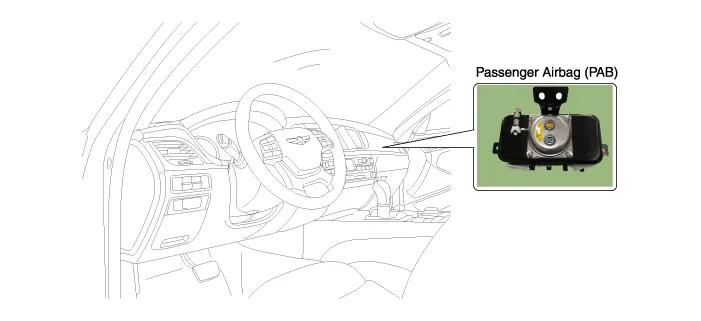

    Description Passenger Airbag (PAB) module is located in the passenger crash pad. This PAB contains 2 firing squibs of airbag and 1 firing squib of active vent.

    Removal 1. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 2. Remove the crash pad. (Refer to Body - "Crash Pad" ) 3.
