Hyundai Genesis (DH): Lubrication System / Oil Pump Components and Components Location

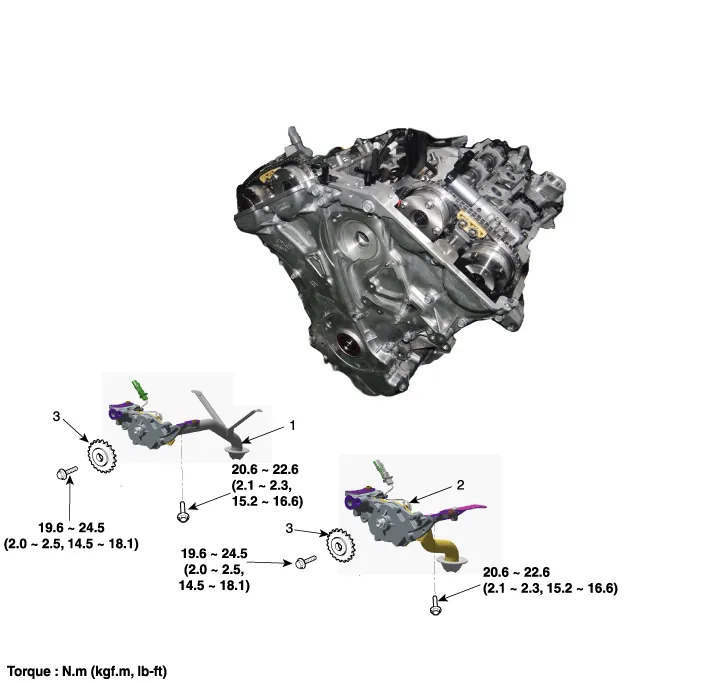

| Components |
| 1. Oil pump (2WD) 2. Oil pump (AWD) | 3. Oil pump sprocket |
Description 2-Stage variable Vane Pump improves the fuel economy by controlling the oil pressure into two stages and by optimizing the hydraulics of low/medium rpm.
Removal and Installation 1. Remove the lower oil pan. (Refer to Lubrication System - "Oil pan") 2. Remove the upper oil pan. 3. Remove the bolt (A) and then separate the chain with sprocket from the oil pump.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Mode Control Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the mode control actuator connector. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4. Verify that the mode control actuator operates to the vent mode when connected in reverse.
Hyundai Genesis (DH) 2013-2016 Service Manual: Auto Defogging Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the auto defogging connector. 3. Verify that the auto defogging actuator operates to the open position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the auto defogging actuator operates to the close position when connected in reverse.
