Hyundai Genesis (DH): SRSCM / Occupant Classification System(OCS) Components and Components Location

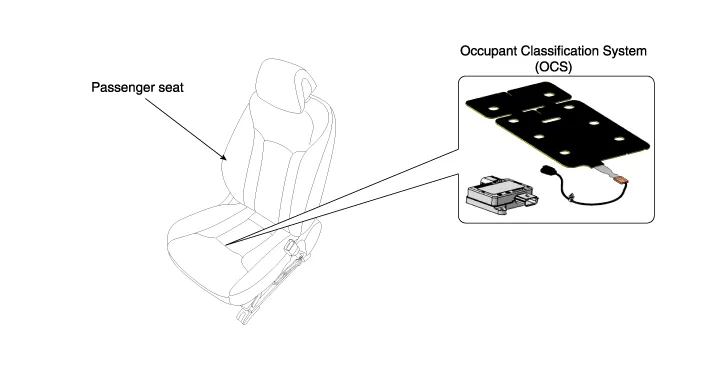

| Components |
Description In order to make normal activation of airbag system, SRSCM detects DTC(s) for the Occupant Classification System (OCS). If the seat is occupied, OCS detects passenger presences status and send signal to SRSCM via CAN.
Removal OCS ECU 1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2. Remove the front passenger seat assembly.
