Hyundai Genesis (DH): Brake System / Master Cylinder Components and Components Location

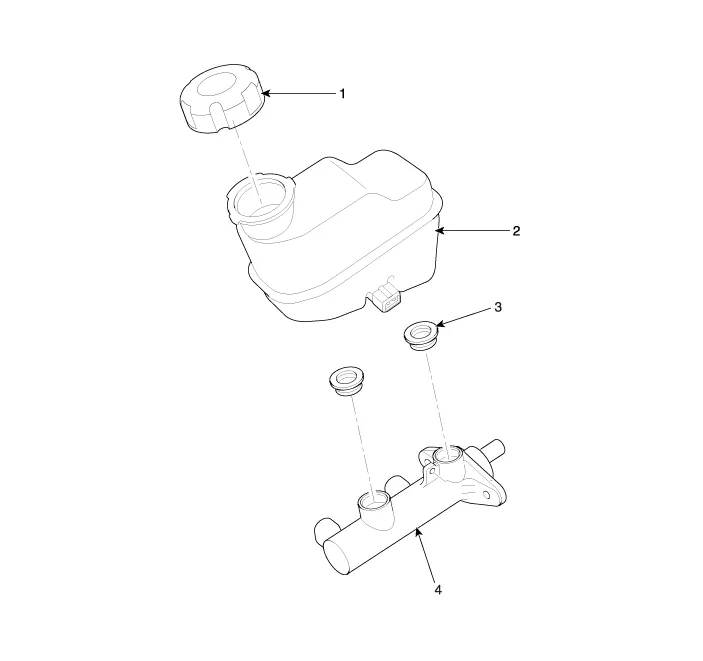

| Components |
| 1. Reservoir cap 2. Reservoir | 3. Grommet 4. Master cylinder |
Brake Booster Operating Test For simply checking the brake booster operation, perform the following tests. 1. Run the engine for one or two minutes, and then stop it.
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Disconnect the ECM connector (A) and TCM connector (B). IDB (C) and then remove the noise barrier (D).
