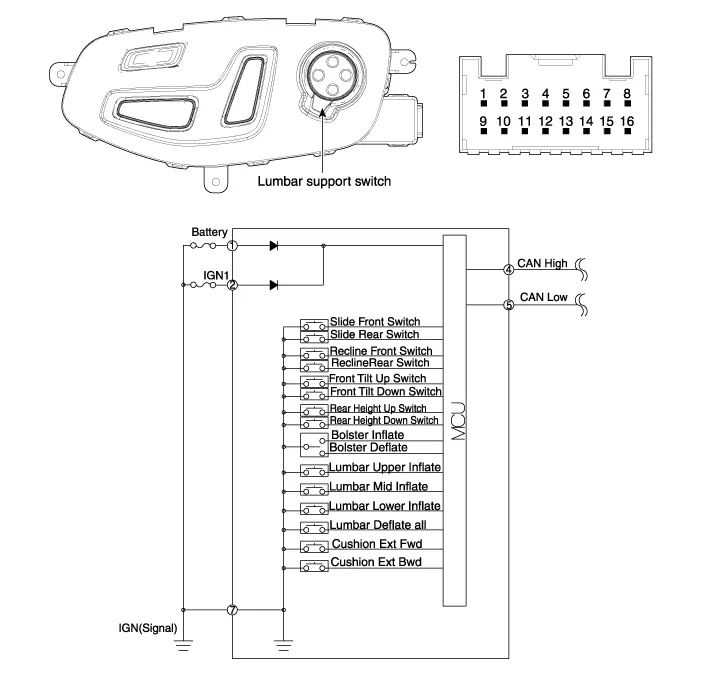

Hyundai Genesis (DH): Seat Electrical / Lumbar support switch Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Seat Electrical / Lumbar support switch Components and Components Location

Component

    Inspection Power Seat Motor 1. Disconnect the connectors for each motor. 2. When the battery power is supplied to the motor connector, check the motor for smooth operation.

    Removal 1. Disconnect the battery(-) terminals. 2. Remove the front seat shield outer cover. (Refer to Body - "Front Seat Shield Outer Cover" ) 3.

    Other information:

    Hyundai Genesis (DH) 2013-2016 Service Manual: PGS Unit (Back & Blinde Unit) Schematic Diagrams

    C

    Hyundai Genesis (DH) 2013-2016 Service Manual: Photo Sensor Repair procedures

    Inspection 1. Turn the ignition switch ON. 2. Connect the GDS. 3. Emit intensive light toward the photo sensor using a lamp, and check the output voltage change. 4. The voltage will rise with higher intensive light and fall with lower intensive light.
