Hyundai Genesis (DH): Ignition System / Ignition Coil Schematic Diagrams

Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Electrical System / Ignition System / Ignition Coil Schematic Diagrams

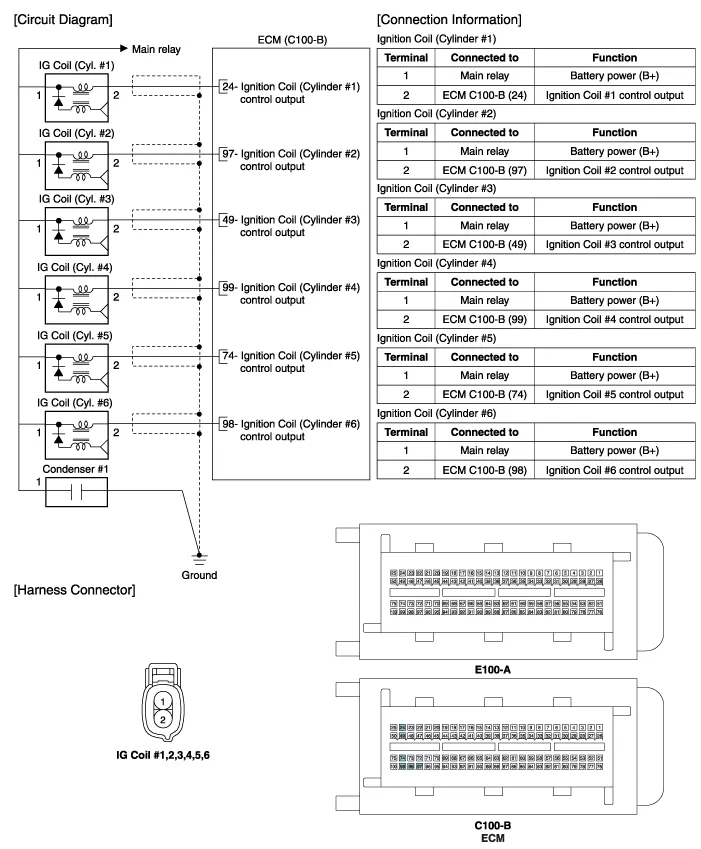

Circuit Diagram

    Specification ItemSpecification Primary Coil Resistance (?)0.62

    Removal Ignition Coil #1 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Remove the engine wiring protector (A) after loosening the bolt.
