Hyundai Genesis (DH): Engine And Transaxle Assembly / Engine Room Under Cover Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Mechanical System / Engine And Transaxle Assembly / Engine Room Under Cover Components and Components Location

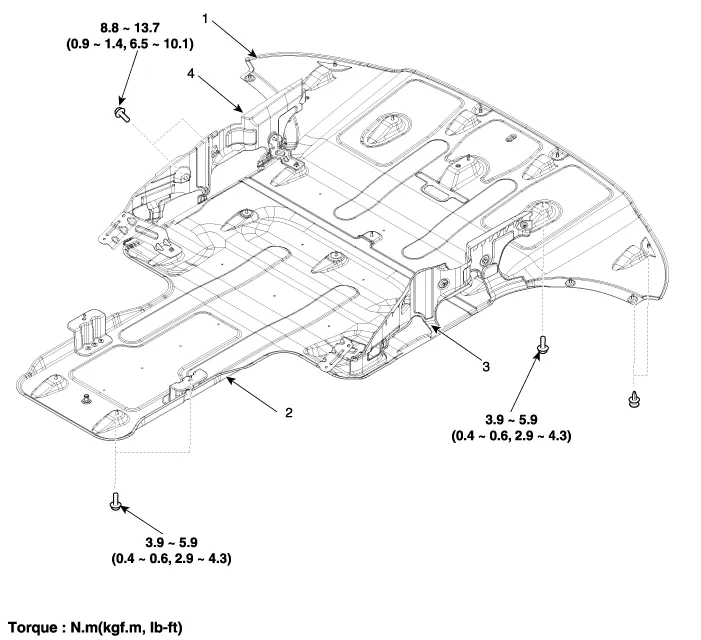

Components
[2WD]

1. Front under cover
2. Rear under cover
3. LH side cover
4. RH side cover

[AWD]

1. Front under cover
2. Rear under cover
3. LH side cover
4. RH side cover

    Removal and Installation Engine Cover 1. Remove the engine cover (A).

    Removal and Installation 1. Remove the front under cover (A). Remove the rear under cover(B). Tightening torque: 3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.
