Hyundai Genesis (DH): Seat Belt Pretensioner / Emergency Fastening Device (EFD) Components and Components Location

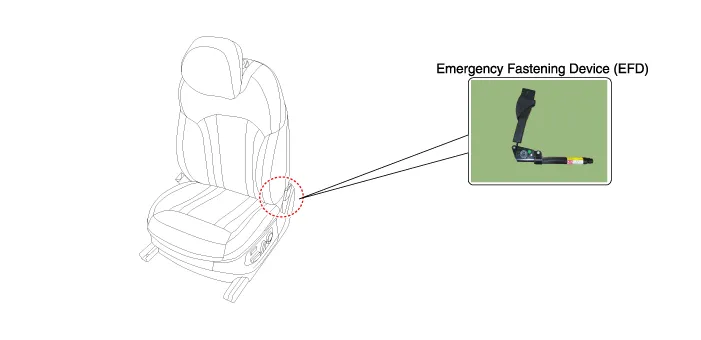

| Components |
Description The Emergency Fastening Device (EFD) operates at the same time with the Seat Belt Pretensioner when it satisifies the deployment condition after a collision.
Removal 1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2. Remove the front seat assembly.
